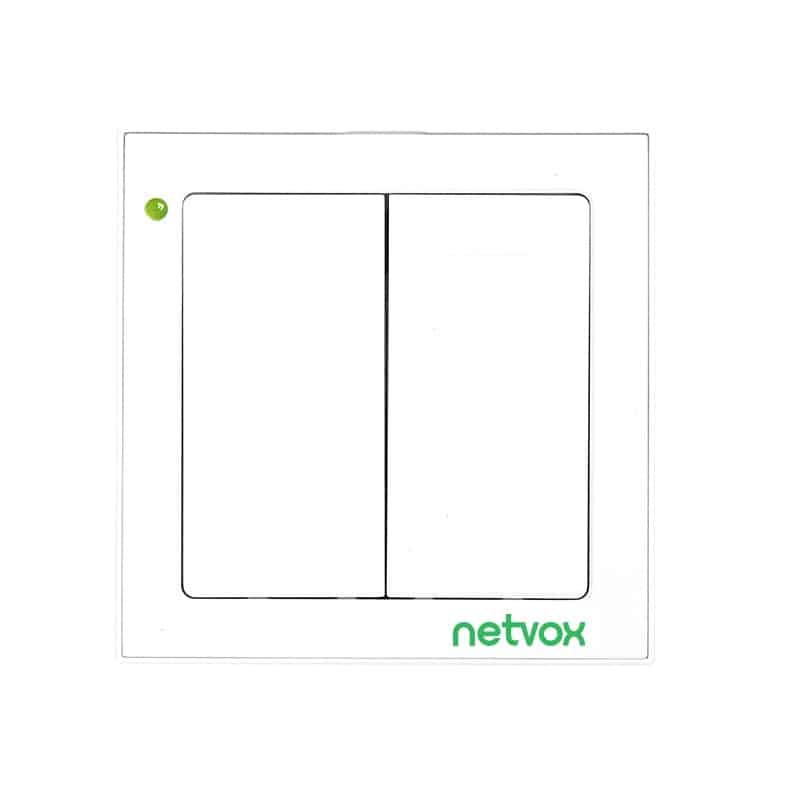

Netvox RB02B – Wireless 2-Gang Push Button

RB02B is a high-reliability wireless controlling terminal device.
It has the characteristics of low power consumption during the standby status, and applying the SX1276
wireless communication module. RB02B is a long-distance smart wall switch which is a Class A device of
netvox based on the LoRaWAN open protocol. According to the needs of different applications, press the
trigger button of RB02B. The device immediately sends trigger information to the gateway.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: RB02B Categories: , , , ,

Description

RB02B is a high-reliability wireless controlling terminal device. It has the characteristics of low power consumption during the standby status, and applying the SX1276 wireless communication module. RB02B is a long-distance smart wall switch which is a Class A device of netvox based on the LoRaWAN open protocol. According to the needs of different applications, press the trigger button of RB02B. The device immediately sends trigger information to the gateway.

• Apply SX1276 wireless communication module
• 2 sections AAA batteries power supply
• 2-Gang Push Button
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Configuration parameters can be configured through a third-party software platform
• Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
• Low power consumption and long battery life Improved

Electric:

Input power

2 x1.5V AAA batteries
Operating Voltage

2.3V to 3V
Low Battery Alarm Voltage 2.4V
Standby Current 11uA
Battery Measurement Accuracy ±0.1V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 82mm* 82mm* 15mm
Environment Temperature Range -20℃ to 55℃
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
