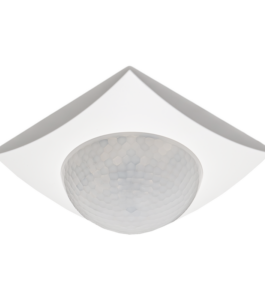

Presence Detector 360° with 4 sensors, White matt finish. For ceiling installation in a installation box. Upgraded application. 4 sensors with lens for presence detection. Adjustable presence and presence sensitivity for day, night and alarm. Coverage 16 m Ø, presence 8 m Ø. 4 light channels, sensors can be individually evaluated. 1 HVAC and 1 alarm / notification channel. Short time presence to reduce the after-running time. Input for an external push button with reset time. Intelligent switching function for automatic / manual operation. Locking and forced function with release time. Extensive day / night function with 2nd switching object. Integrated white LED night light. Orientation light function for leaving the room. Avoiding of false reports for the alarm channel by reducing the sensitivity and adjustable observation window. 3 year warranty.
Presence Detector MR16 360° with 3 sensors. For installation in a MR16 frame for LED spots. With temperature sensor and LED night light. New application. 3 pyro detectors with lens for presence detection. Adjustable presence and presence sensitivity for day, night and alarm. Coverage 11m Ø, presence 5 m Ø. 3 light channels, sensors can be individually evaluated. 1 HVAC and 1 alarm / notification channel. Short time presence to reduce the after-running time. Integrated temperature sensor. Input for an external push button with reset time. Intelligent switching function for automatic / manual operation. Blocking and forced function with release time. Extensive day / night function with 2nd switching object. Integrated LED night light. Orientation light (brightness and time adjustable). Avoiding of false reports for the alarm channel by reducing the sensitivity and adjustable observation window. Also usable for swiveling MR16 mounting frame. 3 year warranty.
Rain Sensor. Surface mounted, including fastening angle. Automatic heating to keep the sensor area dry. Heating operation by choke free output STV-640 / STC series. or external 24 V DC power supply. Current consumption of heating is less than 100 mA. 5 m bus connection terminal. Stainless fastening angle included in delivery. Dimensions (W x H x D): 67 mm x 67 mm x 29 mm. Integrated bus coupling unit. 3 year warranty.
Room Temperatur Sensor 55, White glossy finish. Flush mounted. Integrated BCU. Without controller function. Fits 55 mm systems/ranges: – GIRA Standard 55, E2,E22, Event, Esprit. – BERKER S1, B3, B7. – JUNG A500, Aplus, Acreation, AS500. – MERTEN 1M, M-Smart, M-Plan, M-Pure. Limit values min/max, frost-/heat protection alarm. Operation mode can be set via Bit/Byte objects. Installation with support ring (included in delivery). Integrated bus coupling unit. 3 year warranty.
Room Temperatur Sensor 55, White matt finish. Flush mounted. Integrated BCU. Without controller function. Fits 55 mm systems/ranges: – GIRA Standard 55, E2,E22, Event, Esprit. – BERKER S1, B3, B7. – JUNG A500, Aplus, Acreation, AS500. – MERTEN 1M, M-Smart, M-Plan, M-Pure. Limit values min/max, frost-/heat protection alarm. Operation mode can be set via Bit/Byte objects. Installation with support ring (included in delivery). Integrated bus coupling unit. 3 year warranty.
Room Temperature Controller Smart 63, studio white glossy finish. With colour display, temperature/humidy sensor and 4 inputs. Flush mounted. Integrated BCU. Fits 63 mm systems/ranges: e.g. Busch-Jaeger future linear, solo, carat und Busch-axcent. Active colour display to indicate function and status. Background colour w/b and display brightness adjustable. Display of set and actual temperature. For indoor temperature controlling Range -10 to +50 °C. Selectable temperature controller (PI, Two-position, PWM). Simple setpoint adjustment via separate +/- buttons. 1 Bit +/-, 1 Byte oder 2 Byte absolute object for setpoint adjustment. Setpoint values are stored at bus voltage failure. Limit values min/max, frost protection alarm, min/max memory. Operation mode can be set via Bit/Byte objects. Temperature and humidy sensor with dew point calculation. Message when leaving the comfort zone. 4 binary inputs to connect potential free contacs (push-buttons or window/auxiliary contacts). Ventilation control by hand or automatic operation. 14 Byte object for plain text diagnostic. Installation in a installation box with included support ring. Recommended installation height: 1,60 m. Integrated bus coupling unit. 3 year warranty.
Room Temperature/Humidy sensor 55, White glossy finish. Flush mounted. Integrated BCU. Fits 55 mm systems/ranges: – GIRA Standard 55, E2,E22, Event, Esprit. – BERKER S1, B3, B7. – JUNG A500, Aplus, Acreation, AS500. – MERTEN 1M, M-Smart, M-Plan, M-Pure. Room temperatur sensor for indoor rooms Range -10 to +50 °C. Humidy sensor with dew point calculation. Message when leaving the comfort zone. Limit values min/max, min/max memory. Installation in a installation box with included support ring. Recommended installation height: 1,60 m. Integrated bus coupling unit. 3 year warranty.
Room Temperature/Humidy sensor 63, studio white glossy finish. Flush mounted. Integrated BCU. Fits 63 mm systems/ranges: e.g. Busch-Jaeger future linear, solo, carat und Busch-axcent. Room temperatur sensor for indoor rooms Range -10 to +50 °C. Humidy sensor with dew point calculation. Message when leaving the comfort zone. Limit values min/max, min/max memory. Installation in a installation box with included support ring. Recommended installation height: 1,60 m. Integrated bus coupling unit. 3 year warranty.
Safety Module, 2SU MDRC. MDRC device. Increases the safety of the protected line in the inner and in the outdoor area and protects against manipulations. Easy retrofitting in existing KNX installations. Blocks the connection and prevents the programming and unloading of KNX devices within the line. Safety function is started automatically after bus voltage recovery and/or programming of the Safety Module. Safety function can be temporally disabled by pressing the button on the device or 14 Byte telegram. Safety function for detecting a failed device in the line. Active or passive monitoring of up to 100 KNX devices. Alarm is stored as plain text message in the internal ring memory. Quick application download (long frame support for ETS5). 3 year warranty.
Twilight sensor / Temperature sensor KNX. Outdoor sensor to measure and evaluate the outside brightness and outside temperature. With integrated Bus coupler unit. Light sensor to register twilight and brightness.
Temperature sensor to measure the outside temperature. Two threshold values can be set for each measured value. Adjustable switch on-/off time delay per threshold value. Day- / night function object. Twilight value range 0 – 1000 Lux. Temperature range -20 Grad C bis +55 Grad. Protection classification: IP44. Dimensions: 50 x 77 x 21 (W x H x D). Integrated Bus coupling unit. 3 Jahre warranty.
Weather Station Home. Outdoor installation on wall or pole. 3 channels for sun protection to control blind/shutter. Sun protection up to 3 facades. Offers wide functions to control facades (2 switching thresholds, teach in function). Central shutter control for Up/Down via brightness value (with time delay). Brightness value for east, south, west, twilight. Generates a day/night object. Wind speed value, alarm if wind speed exceeds limit. Temperature value. Suited to control facades at home. Installation on wall or pole. 5 m connection cable. No additional power supply required. Integrated bus coupling unit. 3 year warranty.
