Distance & Level Sensors
Showing 1–24 of 29 results
-
Dragino A01A-15 Ultrasonic Probe for LDDS04
Ultrasonic Sense A01A-15:
* Flat object range 28 cm – 750 cm
* Blind spot distance : 0 ~ 28cm
* Cable Length : 1.5 meter
* Reference Angle: 40°
* Accuracy: ±(1+S×0.3%) cm
* Repeatability less than 5mm
* Suitable for Flat Object Detect -
Dragino A02-15 Ultrasonic Probe for LDDS04
Ultrasonic Sense A02-15:
– Flat object range 3 cm – 450cm
– Blind spot distance : 0 ~ 3cm
– Cable Length : 1.5 meter
– Reference Angle: 60°
– Accuracy: ±(1+S×0.3%) cm
– Repeatability less than 5mm
– Suitable for Flat Object Detect, Rubbish Bin -
Dragino A13-15 Ultrasonic Probe for LDDS04
Ultrasonic Sense A13-15:
* Detect range 25cm – 200 cm
* Blind spot distance : 0 ~ 25cm
* Cable Length : 1.5 meter
* Reference Angle: 20°
* Accuracy: ±(1+S×0.3%) cm
* Repeatability less than 5mm”
* Suitable for Flat Object Detect, Rubbish Bin -
Dragino A16-15 Ultrasonic Probe for LDDS04
Ultrasonic Sense A16-15:
* Detect range 50cm – 1500 cm
* Blind spot distance : 0 ~ 50cm
* Cable Length : 1.5 meter
* Reference Angle: 40°
* Accuracy: ±(1+S×0.3%) cm
* Repeatability less than 5mm
* Suitable for Long Distance Detect, Water Level -
Dragino LDDS04 LoRaWAN 4-Channels Distance Detection Sensor
* LoRaWAN 1.0.3 Class A
* Ultro low power consumption
* 4 x Distance Detection
* Cable Length : 25cm
* AT Commands to change parameters
* Uplink on periodically
* Downlink to change configure
* 8500mAh Battery for long term use, (WITHOUT PROBE, NEED TO BE PURCHASED) -
Dragino LDDS20 Liquid level sensor
* LoRaWAN 1.0.3 Class A
* Ultra low power consumption
* Liquid Level Measurement by Ultrasonic technology
* Measure through container, No need to contact Liquid.
* Valid level range 20mm – 2000mm
* Accuracy: ±(5mm+S*0.5%) (S: Measure Value)
* AT Commands to change parameters
* Uplink on periodically
* Downlink to change configure
* IP66 Waterproof Enclosure
* 8500mAh Battery for long term use -
Dragino LDDS45 LoRaWAN Ultrasonic Distance/Level Sensor
Ultrasonic Sense:
* Flat object range 3 cm – 450cm
* Blind spot distance : 0 ~ 3cm
* Cable Length : 25cm
* Reference Angle: 60°
* Accuracy: ±(1+S×0.3%) cm
* Repeatability less than 5mm -
Dragino LDDS75 LoRaWAN Distance/Level Sensor
Ultrasonic Sense:
* Flat object range 28 cm – 750 cm
* Blind spot distance : 0 ~ 28cm
* Cable Length : 25cm
* Reference Angle: 40°
* Accuracy: ±(1+S×0.3%) cm
* Repeatability less than 5mm -
Dragino LLDS12 LiDAR ToF Distance Detection Sensor
* LoRaWAN 1.0.3 Class A
* Ultra-low power consumption
* Laser technology for distance detection
* Operating Range – 0.1m~12m①
* Accuracy – ±5cm@(0.1-6m), ±1%@(6m-12m)
* AT Commands to change parameters
* Uplink on periodically
* Downlink to change configure
* 8500mAh Battery for long term use -
Dragino LMDS200 Microwave Radar Distance Detection Sensor
LoRaWAN 1.0.3 Class A
Ultra-low power consumption
Microwave Radar for distance detection
Measure Range: 0.5m ~ 20m
Accuracy: ±10cm
Horizontal Angel: 78°
Vertical Angel: 23°
Short uplink interval for Distance Alarm
Monitor Battery Level
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
AT Commands to change parameters
Uplink on periodically
Downlink to change configure
8500mAh Battery for long term use
Wall Mountable
Outdoor Use -

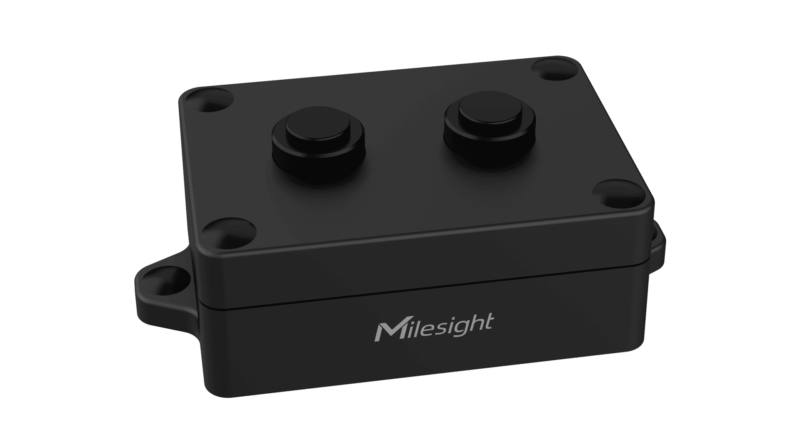

Milesight EM-310UDL Ultrasonic Distance/Level Sensor
3-Axis Accelerometer
Dual Ultrasonic Sensor
IP67 Waterproof
LoRaWAN® Based
Easy Configuration (via NFC)
Detection Range：3 ~ 450 cm
Status: Normal / Tilt -
Milesight EM500-SWL Submersible Water Level Sensor – Up to 3m
19000 mAh Li-SOCL2 Battery
Resolution: 0.01 m
NFC Enabled
Measuring Range & Accurecy: 0 ~ 3m, 0.5FS
Cable Length: At least 1-1.5m longer than measuring range (Customizable)
US$3.00 dollars for one meter extension cable.
Additional inquiry needed when measuring range >10m. -
Milesight EM500-SWL Submersible Water Level Sensor – upto 10m
19000 mAh Li-SOCL2 Battery
Resolution: 0.01 m
NFC Enabled
Measuring Range & Accurecy: 0 ~ 10m, 0.5FS
Cable Length: At least 1-1.5m longer than measuring range (Customizable)
US$3.00 dollars for one meter extension cable.
Additional inquiry needed when measuring range >10m. -
Milesight EM500-SWL Submersible Water Level Sensor – Upto 5m
19000 mAh Li-SOCL2 Battery
Resolution: 0.01 m
NFC Enabled
Measuring Range & Accurecy: 0 ~ 5m, 0.5FS
Cable Length: At least 1-1.5m longer than measuring range (Customizable)
US$3.00 dollars for one meter extension cable.
Additional inquiry needed when measuring range >10m. -
Milesight EM500-UDL Ultra Sonic Distance Level Sensor – C100
19000 mAh Li-SOCL2 Battery
Resolution: 1 mm
NFC Enabled
Range & accurecy : 0.25 ~ 8 m± (1+0.3%* S) cm, S = Distance -
Milesight EM500-UDL Ultrasonic Distance Level Sensor – C050
19000 mAh Li-SOCL2 Battery
Resolution: 1 mm
NFC Enabled
Range & accurecy : 0.25 ~ 5 m± (1+0.3%* S) cm, S = Distance -
Milesight EM500-UDL Ultrasonic Distance Level Sensor – W050
19000 mAh Li-SOCL2 Battery
Resolution: 1 mm
NFC Enabled
Range & accurecy : 0.3 ~ 5 m± 1%FS -

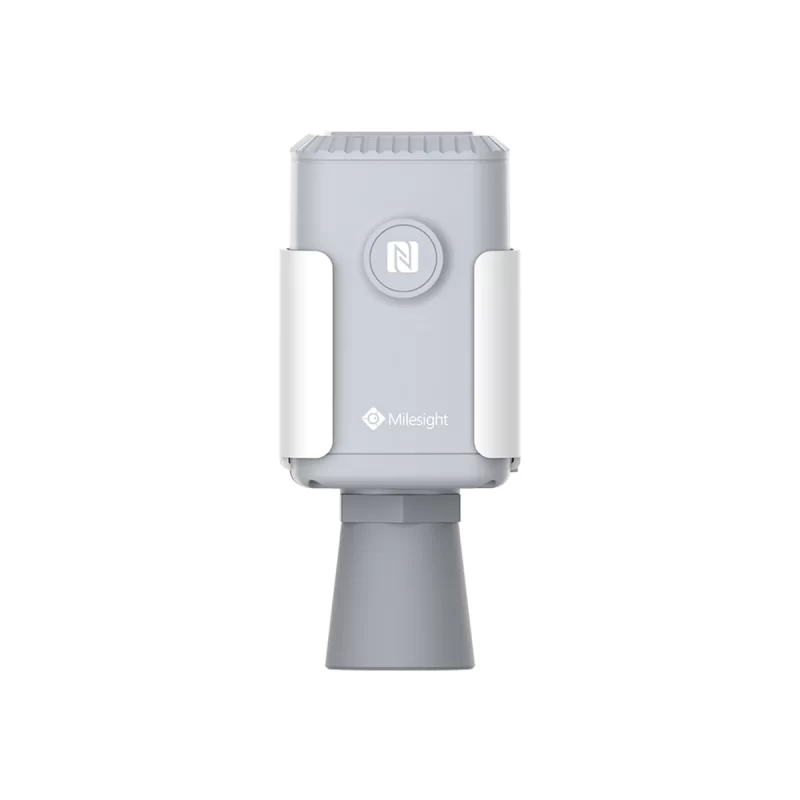

Milesight EM500-UDL Ultrasonic Distance Level Sensor – W100
19000 mAh Li-SOCL2 Battery
Resolution: 1 mm
NFC Enabled
Range & accurecy : 0.5 ~ 10 m± 1%FS -
Netvox R313LA-Wireless Infrared Proximity Sensor
362.25د.إ inc. VATR313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.
-

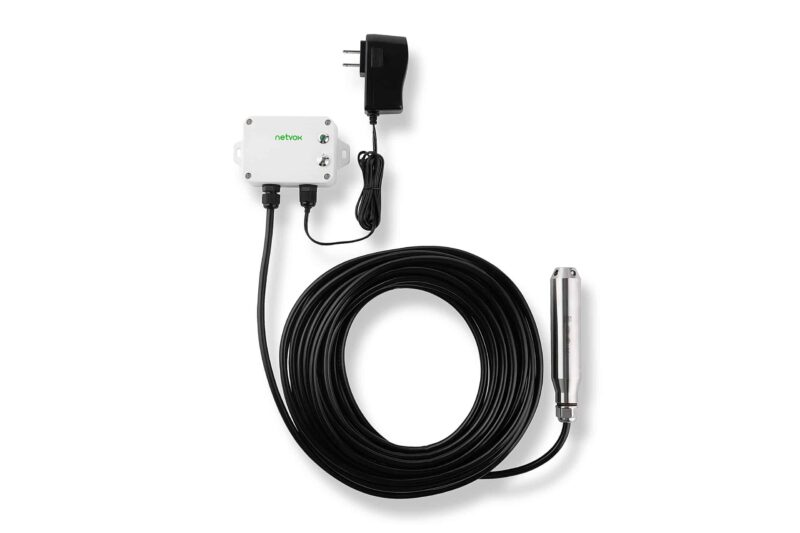

Netvox R718PA11 – Wireless Liquid Level Sensor
R718PA11 is a wireless communication device for detecting the liquid depth. R718PA11 can detect the depth of the liquid in the container.
-

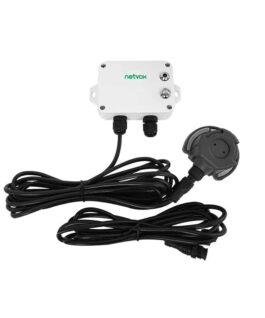

Netvox R718PA22 – Wireless Bottom-installed Ultrasonic Liquid Level Sensor
The R718PA22 is a wireless communication device that measures the liquid level with an ultrasonic liquid level sensor. Ultrasonic liquid level sensor installed at the bottom of the container, it may measure water, gasoline, diesel and small, medium, large capacity storage tanks (metal, plastic, glass material). R718PA22 main unit and the ultrasonic liquid level sensor communicate via RS485 interface, and the detected data is sent to the other equipment shown which employs compliance LoraWANTM wireless communication protocol standards.
-
Netvox R718PE – Wireless Top Mounted Ultrasonic Liquid Level Sensor
R718PE is a wireless communication device that uses ultrasound to detect the distance between the device and the detected object. The medium the device detects is the air, so the detected object can be any liquid or solid that has a flat and horizontal surface, water level for example.
The main body and the sensor of R718PE communicates via the UART serial port, and the detected data can be transmitted via LoRa communication. -
Netvox R718PE01 – Wireless Top-Mounted Ultrasonic Level Sensor
R718PE01 is a wireless communication device that uses ultrasonic waves to measure
distance. The ultrasonic transmission medium of R718PE01 ultrasonic sensor is air, so the
measured object can be any liquid or solid with a certain plane, which can be used for liquid
level detection, material level detection, etc. The detection angle of R718PE01 is about 20 °,
which has a stronger transmission signal and is more suitable for the detection of objects such
as grain heaps and sand. -
Netvox R718VA-Wireless Capacitive Proximity Sensor
651د.إ inc. VATR718VA is a device to detect the status of toilet water, hand sanitizer level, presence or absence of tissue. This device is connected with a non-contact capacitive sensor can be mounted to the exterior of the container, without direct contact with the object to be detected, which may detect the current water level of positions mounted, or the presence or absence of liquid soap or toilet paper; the detected data is transmitted to other devices through the wireless network. It uses the SX1276 wireless communication module.
