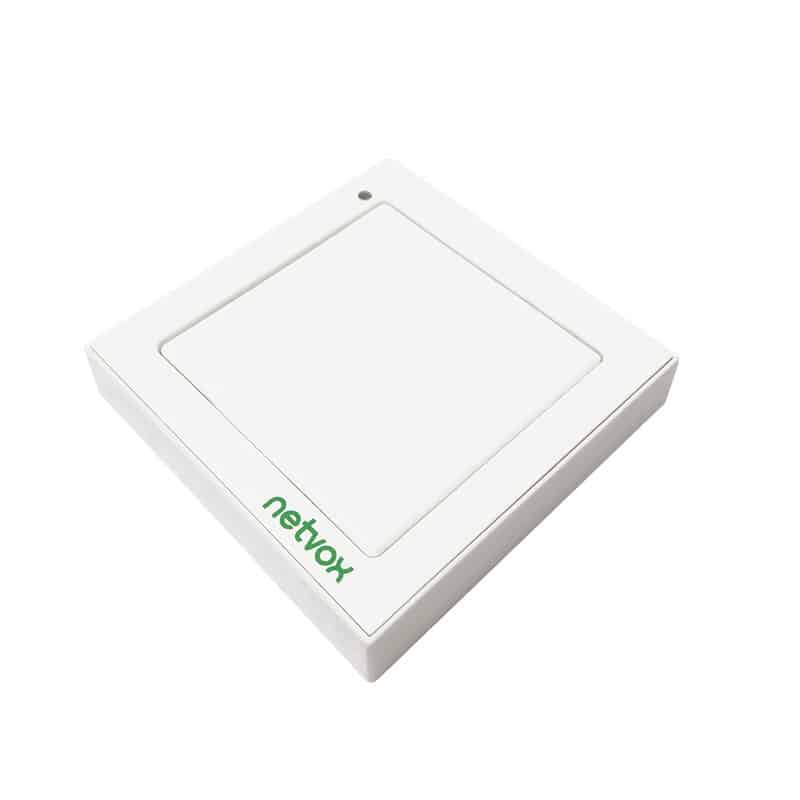

Netvox RB02I – Wireless Emergency Push Button

The RB02I product is a wireless control terminal device for smart homes and high reliability. It features low standby power consumption and is fully compliant with the LoRaWANâ„¢ protocol standard. RB02I is an emergency alarm triggering device, with a silicone waterproof cover.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: RB02I Wireless Emergency Push Button Categories: , ,

Description

The RB02I product is a wireless control terminal device for smart homes and high reliability. It features low standby power consumption and is fully compliant with the LoRaWANâ„¢ protocol standard. RB02I is an emergency alarm triggering device, with a silicone waterproof cover.

•Apply SX1276 wireless communication module
•2×1.5V AAA alkaline batteries power supply
•Has waterproof silicone sleeve to avoid water splashing
•Push button status detection
•LoRaWAN™ Class A compatible
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Input power

2 x1.5V AAA alkaline batteries
Operating Voltage

2.3V-3V
Low Battery Alarm Voltage 2.4V
Standby Current 14uA
Battery Measurement Accuracy ±0.1V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension 82mm*82mm*15mm
Working Temp -20°C ～ +55°C
Storage Temp -40°C ～ +85°C
Humidity Detecting Range ＜90%RH
