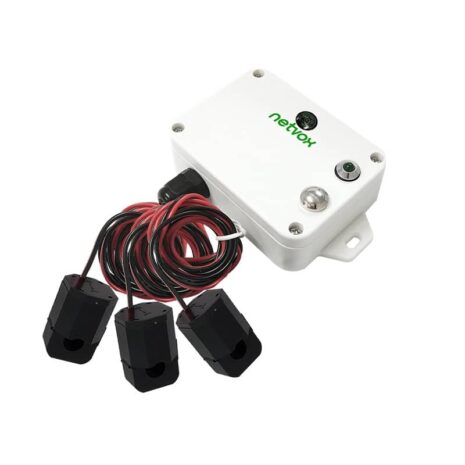

Netvox R718NL37-Wireless Light Sensor and 3-Phase Current Meter with 3x75A Clamp-On CT

834.75د.إ inc. VAT

R718NL37 is used to detect three-phase electrical input current and ambient light intensity detection.
It adopts the clamp-on current transformer, which can be conveniently connected tothe measuring device.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R718NL37 Categories: , , ,

Description

• Apply SX1276 wireless communication module
• 2 ER14505 battery (3.6V/section) in parallel power supply
• Protection level: host body IP53, sensor IP30
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Adopt clamp-on current transformer, it can be easily connected with the device to be monitored
• illuminance detection
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Input Power

2 x 3.6V ER14505 AA Size lithium batteries
(3.6V2400mah/section）

Standby Current

32uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

127mA/3.3V

Battery Measurement Accuracy
Accuracy

±0.1V

Current Resolution

1mA

Current Measurement Range

100mA to 75A
(depending on the current transformer configuration)

Illuminance Range

3 Lux – 220K Lux

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension Host body: L: 112 mm *W: 88.19 mm *H: 32 mm
Sensor: H:42.5 * L:27.5 * W:25mm
Host body Weight About 141 g
Sensor Weight About 49.6*3 g
Sensor External Wiring Length About 900mm
Environment Temperature Range -20℃ ~ 55℃
Storage Temperature Range -40℃～85℃
Environment Humidity Range <90%RH (No condensation)
Mounting Screw / Magnet
