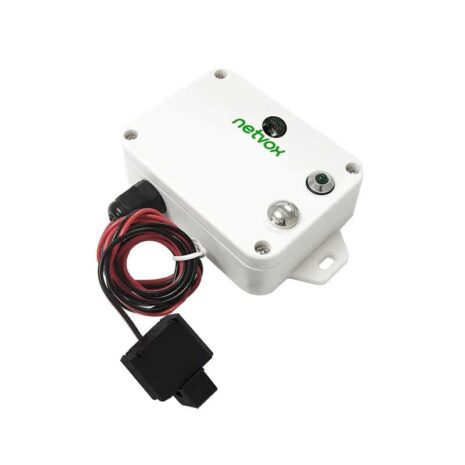

Netvox R718NL13-Wireless Light Sensor and 1-Phase Current Meter with 1x30A Clamp-On CT
The NETVOX Wireless Light Sensor and 1-Phase Current Meter with 1x30A Clamp-On CT is used to detect single-phase electrical input current and ambient light intensity detection.
The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.
The device adopts the split-core current transformer, which can be conveniently connected to the measuring device.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
• Apply SX1276 wireless communication module
• 2 section of ER14505 battery (3.6V / section) in parallel
• Protection level: Main body IP53; Clamp-On CT IP30
•The base is attached with a magnet that can be attached to a ferromagnetic material object
• The clamp-on CT allows easier installation to the device you would like to detect the current from
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view
data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life
Electric:
| Power supply |
2 section of ER14505 battery (3.6V / section) in parallel |
|
Battery life |
Battery life are 5 years |
| Stand-by current | 36uA |
| Wake-up current | 7mA |
| RF receiving current | 11 mA @ 3.3V |
| RF emission current | 127 mA @ 3 .3 V |
| Battery measurement accuracy | ± 0.1V |
|
Current measurement error value |
± 1% |
| Current resolution | 1mA |
|
Current measurement accuracy |
100mA to 30 A |
*Specific electrical characteristics may vary depending on the power supply voltage
Frequency:
| Frequency range | 863MHz-928MHz 470MHz-510MHz |
| TX Power | US915Â Â 20dbmï¼› AS923Â Â 16dbmï¼› AU915Â Â 20dbmï¼› CN470Â Â 19.15dbmï¼› EU868Â Â 16dbmï¼› KR920Â Â 14dbmï¼› IN865Â Â Â 20dbmï¼› |
| Receiving sensitivity | -136dBm (LoRa, Spreading Factor = 12, Bit Rate = 293bps); -121 dBm ( FSK, Frequency deviation = 5kHz, Bit Rate = 1.2kbps) |
| Antenna type | Built-in antenna |
| Communication distance | 10 km (the actual transmission distance depends on the environment. ) |
| Data transfer rate | 0.3kbps ～ 50k bps |
| Modulation system mode | LoRa / FSK (Note: you can choose one of them) |
| Available LoRaWAN Band |
EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510 |
Physical:
|
Size |
Main body size: L: 112 mm * W: 88.19 mm * H: 32 mm |
|
Main Body Weight |
Approximately 141 g |
|
Sensor Weight |
About 30g |
|
Sensor External Wiring Length |
Approximately 900mm |
|
Ambient Operating Temperature Range |
-20℃ ～ 55℃ |
|
Ambient Storage Temperature Range |
-40℃ ～ 85℃ |
|
Ambient Humidity Range |
<90% RH (non-condensing) |
|
Fixed Way |
Screw / magnet |
Additional information
| Brand | Netvox |
|---|
