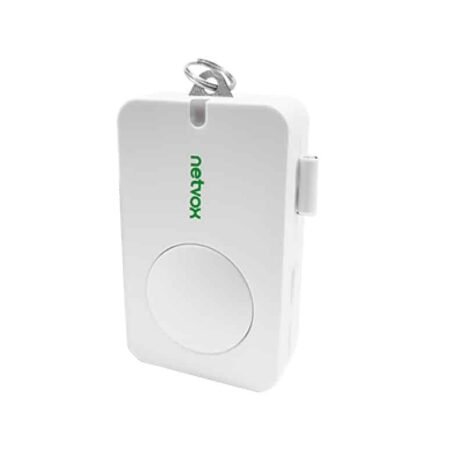

Netvox R313MA – Wireless Emergency Button

The R313MA is a wireless emergency button that detects after pressing the emergency button and sends an alarm message to the gateway.
It uses the SX1276 wireless communication module.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R313MA Categories: , , ,

Description

The R313MA is a wireless emergency button that detects after pressing the emergency button and sends an alarm message to the gateway. It uses the SX1276 wireless communication module.

● 2 sections of 3.0V CR2450 batteries in parallel
● Apply SX1276 wireless communication module
● Simple operation, no wiring required
● Comes with key ring for easy fixing and carrying
● LoRaWAN Class A compatible
● Frequency Hopping Spread Spectrum (FHSS)
● Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
● Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
● Low power consumption and long battery life

Electric:

Input Power 2pcs 3.0V CR2450 button battery
Operating Voltage DC 2.3V～3V
Standby Current 13uA@3V
Wakeup Current 7.02mA (Typical value)
Wakeup current range 0.8mA-20 mA
* When not transmitting /receiving LoRa data)
Low Battery Voltage Threshold 2.4V
Battery Measurement Accuracy ± 0.1V

Frequency:

Frequency Range 863MHz-928MHz 470MHz-510MHz
TX Power US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；
Rx Sensitivity -136dBm(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type External antenna
Communication Range Up to 10km, the actual transmission distance depends on the environment.
Data Transfer Rate 0.3kbps～50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,IN865-867,CN470-510
Configured before shipment

Physical:

Main Body Dimension 57mm x 38.05mm x 15.2mm
Weight 45g
Operating Temperature -20℃ ～ 55℃
Environment Humidity Range <90% RH (No condensation)
Storage Temperature -40℃ ～ 85℃
