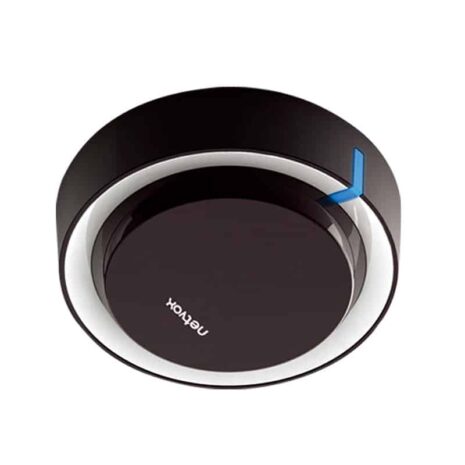

Netvox R211- Wireless IR Blaster

Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R211 Categories: , , ,

Description

Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.

  • LoRaWAN Class C compatible
  •  Frequency Hopping Spread Spectrum (FHSS)
  •  Improved interference immunity
  •  Encrypt-RFâ„¢ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  •  Built-in 4M serial flash
  •  Infrared learning and emission
  •  Infrared frequency 38KHz
  •  Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
  •  Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables



Electric:

Power Supply DC 12V
Working Current 50mA / 12V/ 0.6W
Infrared Frequency 38 KHz
Infrared Transmission Range 32 meters

Frequency:

TX Power 19dBm±1dBm
Rx Sensitivity -136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range Up 10 km, the actual transmission distance depends on the environment.
Data Transfer Rate 0.3kbps～50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870，US902-928，AU915-928，
KR920-923，AS923，CN470-510
Configured before shipment
Power Supply DC 12V
Working Current 50mA / 12V/ 0.6W
Infrared Frequency 38 KHz
Infrared Transmission Range 32 meters

Physical:

Dimension Diameter-106mm , height-30.5mm
Weight 100g
Operating Temperature -20℃ ～ 55℃
Environment Humidity Range 5% RH ~ 95% RH  (No condensation)
Storage Temperature -40℃ ～ 85℃
