ANTHEM MCA 225 GEN 2 2-Channel Power Amplifier – PURE PERFORMANCE, PURE VALUE
To complement the NEW AVM 90 and 70 A/V Processors, Anthem introduces the new MCA 525, 325 and 225 GEN 2 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.
The MCA 525 GEN 2, MCA 325 GEN 2 and MCA 225 GEN 2, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.
2-channel power amplifier; 225 watts per channel continuous power into 8 ohms.
MCA 225 GEN 2 Specifications
| POWER OUTPUT (PER CHANNEL) (Continuous RMS, 20 Hz – 20 kHz, <1% THD) |
||||||||||
|
||||||||||
 |
||||||||||

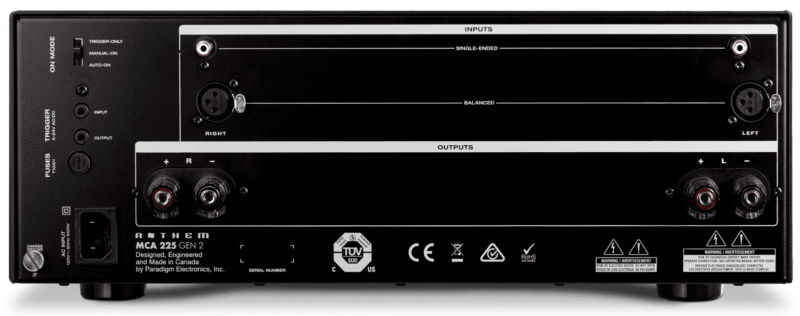

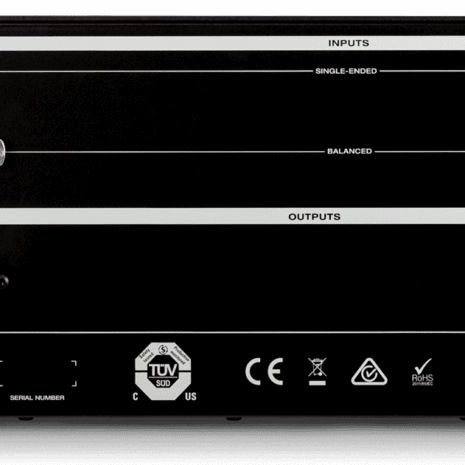

| INPUTS / OUTPUTS | ||||||||||
| Inputs | Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack) | |||||||||
| Outputs | Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack) | |||||||||
| SWITCHES | ||||||||||
| Front Panel | Power (On/Off) | |||||||||
| Rear Panel | 3 On/Off Modes (Trigger, Manual, Auto) | |||||||||
| THD AT 100W | ||||||||||
| at 1 kHz | 0.0010% | |||||||||
| at 20 kHz | 0.015% | |||||||||
| IMD AT 100 W | ||||||||||
| ITU-R (19 kHz + 20 kHz) | 0.0005% | |||||||||
| SMPTE (60 Hz + 7 kHz) | 0.002% | |||||||||
| FREQUENCY RESPONSE, 20 HZ TO 20 KHZ | ||||||||||
| open circuit | ± 0.1 dB | |||||||||
| 8Ω | ± 0.1 dB | |||||||||
| 4Ω | ± 0.1 dB | |||||||||
| 2Ω | ± 0.2 dB | |||||||||
| OTHER SPECIFICATIONS | ||||||||||
| SNR, IEC-A, ref. 225 W | 120 dB | |||||||||
| Power Bandwidth, -3 dB at 200 W into 8 ohms | 90 kHz | |||||||||
| Slew Rate | 30 V/μs | |||||||||
| Damping Factor, 20 Hz to 1 kHz | 300 | |||||||||
| Channel Separation, 100 Hz to 10 kHz | >65 dB | |||||||||
| Input Impedance (RCA / XLR) | 10 kΩ / 15 kΩ | |||||||||
| Input Sensitivity, 225 W into 8 Ω | 1.5 Vrms | |||||||||
| Voltage Gain | 29 dB | |||||||||
| POWER CONSUMPTION | ||||
| standby | idle | typical | high output | |
|---|---|---|---|---|
| MCA 525 (Gen. 2) | 2.0 W | 80 W | 550 W | 1200 W |
| MCA 325 (Gen. 2) | 1.4 W | 47 W | 350 W | 750 W |
| MCA 225 (Gen. 2) | 1.0 W | 35 W | 240 W | 500 W |
| DIMENSIONS | ||
| Height | 6-5/8” (16.9 cm) | |
| Height with Rackmount Kit | 4U | |
| Width | 17-1/4″ (43.9 cm) | |
| Depth | 18-1/8″ (46 cm) | |
| WEIGHT | ||
| MCA 525 (Gen. 2) | 61 lb (27.5 kg) | |
| MCA 325 (Gen. 2) | 43 lb (19.5 kg) | |
| MCA 225 (Gen. 2) | 40 lb (18 kg) | |
| POWER REQUIREMENT | ||
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. | |
