ANTHEM – EXCEPTIONAL PERFORMANCE, UNMATCHED VALUE

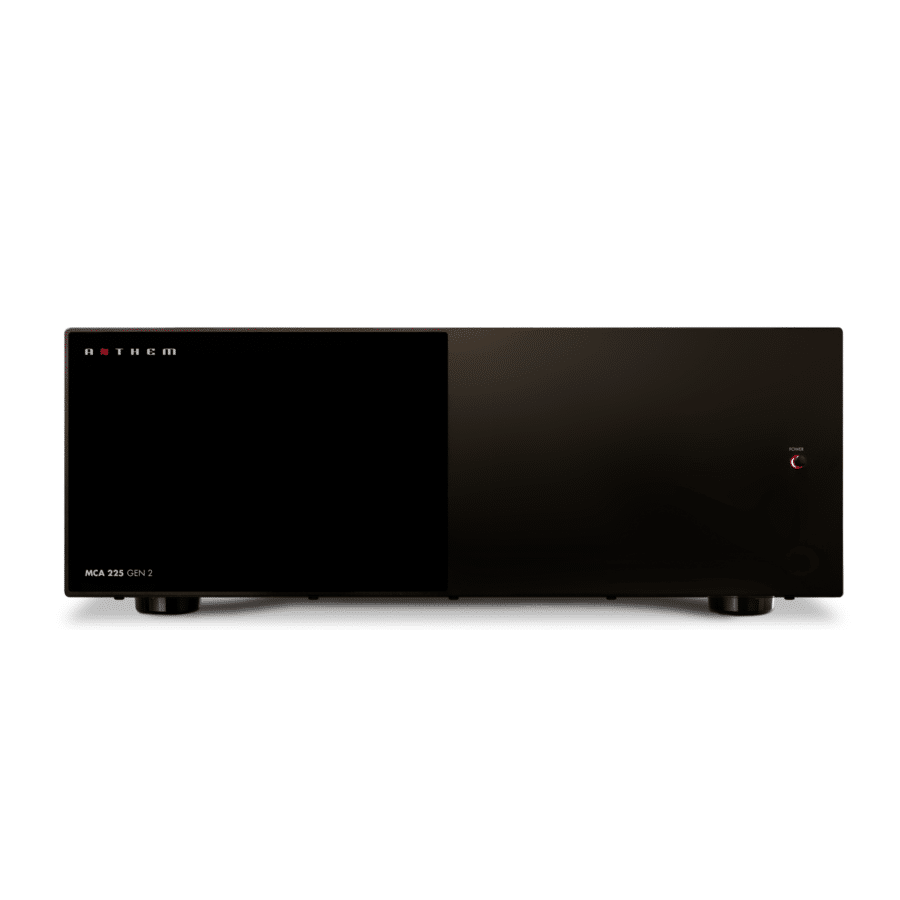

To complement the cutting-edge A/V processing capabilities of the NEW AVM 90 and 70 A/V Processors, Anthem proudly introduces the latest MCA 525, 325, and 225 GEN 2 power amplifiers. Available in 5, 3, and 2-channel configurations, these new MCA amplifiers showcase enhanced power efficiency and robust reliability. The MCA Series GEN 2 brings a reduction in THD (total harmonic distortion), ensuring a purer, more pristine sound quality, accompanied by minimal noise for an exceptionally quiet audio background.
Crafted and designed in Canada, the MCA 525 GEN 2, MCA 325 GEN 2, and MCA 225 GEN 2 stand out as amplifiers unlike any other globally. They boast custom low-noise high-power toroidal transformers, high-current bipolar output transistors, top-notch filter capacitors, advanced power supply regulators, oversized aluminum heatsinks, custom-designed dual binding posts, and patented auto-on/off circuitry. The result is superior craftsmanship evident in the delivery of clean, clear, audiophile-quality sound across the entire frequency spectrum.
The MCA 525 GEN 2, a 5-channel power amplifier, offers an impressive 225 watts per channel continuous power into 8 ohms.
MCA 525 GEN 2 Specifications
| POWER OUTPUT (PER CHANNEL) (Continuous RMS, 20 Hz – 20 kHz, <1% THD) |
||||||||||
|
||||||||||
 |
||||||||||

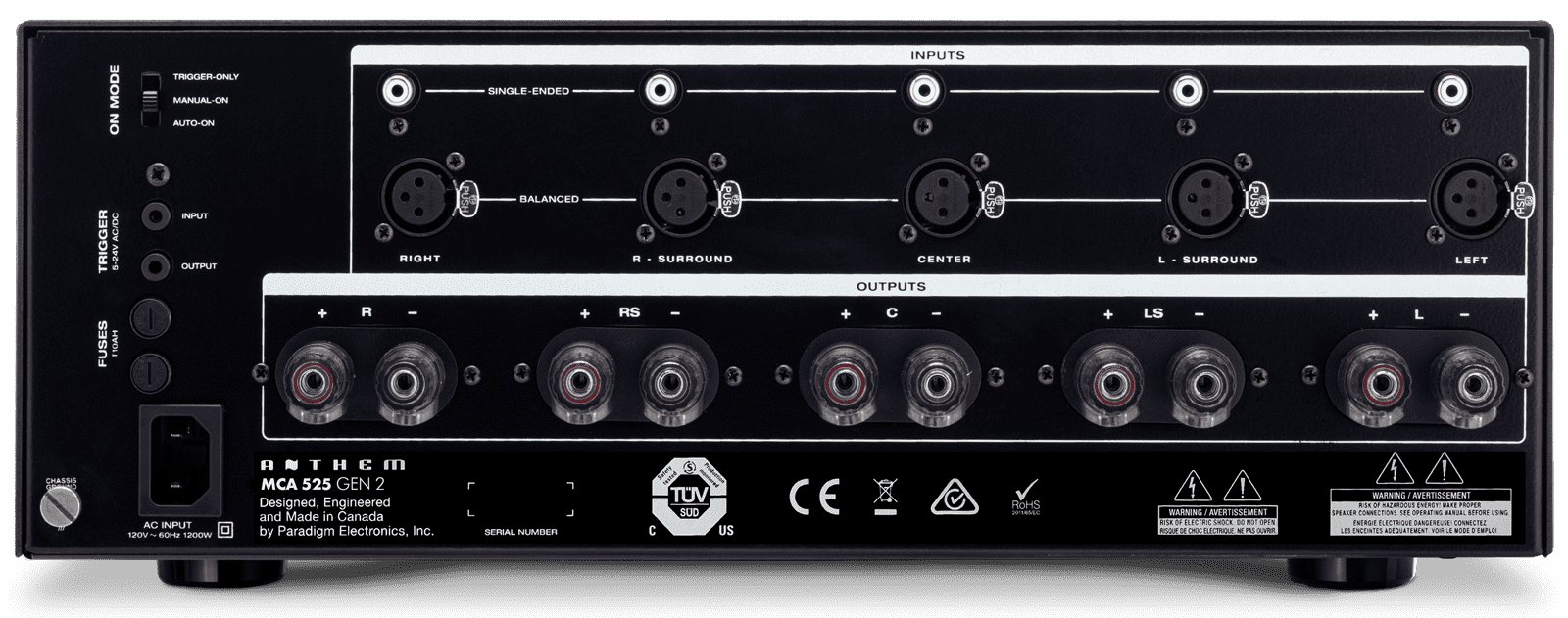

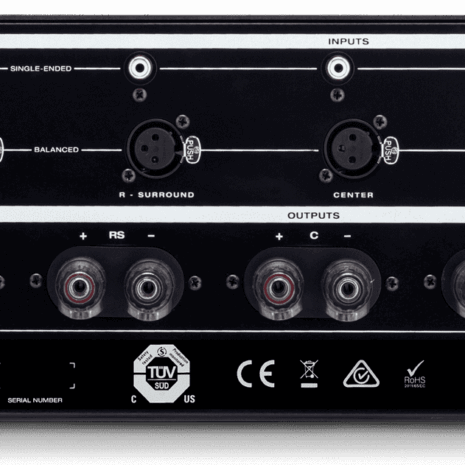

| INPUTS / OUTPUTS | ||||||||||
| Inputs | Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack) | |||||||||
| Outputs | Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack) | |||||||||
| SWITCHES | ||||||||||
| Front Panel | Power (On/Off) | |||||||||
| Rear Panel | 3 On/Off Modes (Trigger, Manual, Auto) | |||||||||
| THD AT 100W | ||||||||||
| at 1 kHz | 0.0010% | |||||||||
| at 20 kHz | 0.015% | |||||||||
| IMD AT 100 W | ||||||||||
| ITU-R (19 kHz + 20 kHz) | 0.0005% | |||||||||
| SMPTE (60 Hz + 7 kHz) | 0.002% | |||||||||
| FREQUENCY RESPONSE, 20 HZ TO 20 KHZ | ||||||||||
| open circuit | ± 0.1 dB | |||||||||
| 8Ω | ± 0.1 dB | |||||||||
| 4Ω | ± 0.1 dB | |||||||||
| 2Ω | ± 0.2 dB | |||||||||
| OTHER SPECIFICATIONS | ||||||||||
| SNR, IEC-A, ref. 225 W | 120 dB | |||||||||
| Power Bandwidth, -3 dB at 200 W into 8 ohms | 90 kHz | |||||||||
| Slew Rate | 30 V/μs | |||||||||
| Damping Factor, 20 Hz to 1 kHz | 300 | |||||||||
| Channel Separation, 100 Hz to 10 kHz | >65 dB | |||||||||
| Input Impedance (RCA / XLR) | 10 kΩ / 15 kΩ | |||||||||
| Input Sensitivity, 225 W into 8 Ω | 1.5 Vrms | |||||||||
| Voltage Gain | 29 dB | |||||||||
| POWER CONSUMPTION | ||||
| standby | idle | typical | high output | |
|---|---|---|---|---|
| MCA 525 (Gen. 2) | 2.0 W | 80 W | 550 W | 1200 W |
| MCA 325 (Gen. 2) | 1.4 W | 47 W | 350 W | 750 W |
| MCA 225 (Gen. 2) | 1.0 W | 35 W | 240 W | 500 W |
| DIMENSIONS | ||
| Height | 6-5/8” (16.9 cm) | |
| Height with Rackmount Kit | 4U | |
| Width | 17-1/4″ (43.9 cm) | |
| Depth | 18-1/8″ (46 cm) | |
| WEIGHT | ||
| MCA 525 (Gen. 2) | 61 lb (27.5 kg) | |
| MCA 325 (Gen. 2) | 43 lb (19.5 kg) | |
| MCA 225 (Gen. 2) | 40 lb (18 kg) | |
| POWER REQUIREMENT | ||
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. | |
