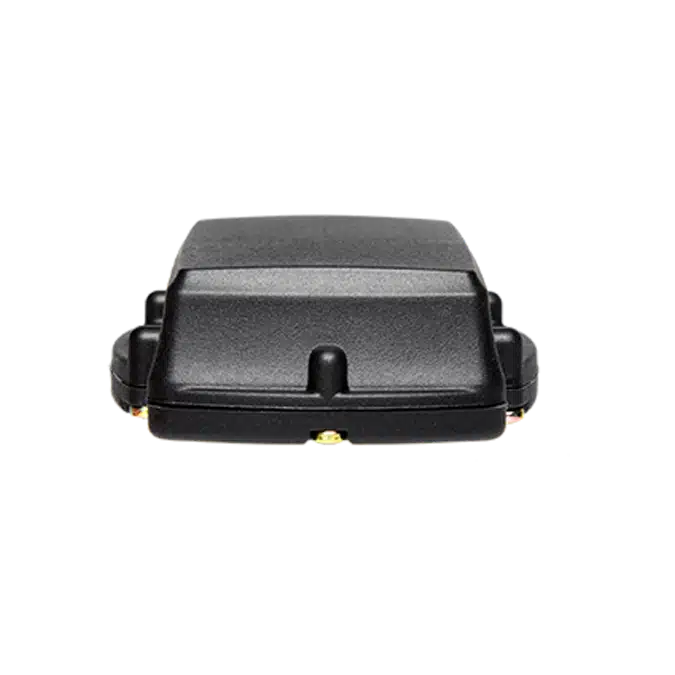

Yabby Edge Cellular – Indoor / Outdoor Battery-Powered GPS

Ultra-rugged and compact Indoor/Outdoor battery-powered asset tracker. Features cloud-based location solving for over 10 years of battery life.

  • GNSS (GPS/BeiDou), Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management
  • Deploy-once battery life with 10+ years on only 3 x AAA user-replaceable batteries
  • Cloud-based location solving (versus on-device) for substantial power savings
  • Tracks assets when they’re on the move and enters sleep mode when stationary to save power
  • ‘Battery Low’ and ‘Battery Critical’ alerts
  • Weatherproof and ultra-rugged IP67 housing
  • LTE-M / NB-IoT Connectivity
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: YABBY-EDGE-4G Categories: , , , Tags: , , , , , ,

Description

Yabby Edge Cellular Features

Indoor / Outdoor

GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management.

Cloud-Based Location Solving

Transfers the location processing workload from the device to the cloud for substantial power savings.

Rugged & Weatherproof

IP67 waterproof and dust-resistant housing for extreme durability.

Off-the-Shelf Batteries

Powered by user-replaceable, off-the-shelf 3 x AAA Lithium batteries with ‘Battery Low’ and ‘Battery Critical’ alerts.

Wire-Free Installation

Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.

LTE-M/NB-IoT Network Roaming

Supports automatic roaming between LTE-M and NB-IoT networks with minimal delay and marginal impact on battery life or performance (roaming SIM required).

Intelligent Power Management

Optimize power consumption with Intelligent Power Management tools including built-in balanced, low-power, and ultra-low power network registration strategies, accelerometer-based location scan throttling, and more.

Flexible Configuration

Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.

Periodic or Movement-Based

Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

Sleep Mode

Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.

Impact Detection

Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.

Tip Detection & Rotation Counting

Axis angle reporting, tip detection and rotation counting (planned).

Asset Utilization

Capture run hours based on movement to understand and optimize asset utilization.

Preventative Maintenance

Set reminders based on distance traveled and run hours to reduce maintenance and repair costs.

Theft Recovery

Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

Additional information

Manufacturer

Digital Matter
Brand

Digital Matter
LTE-M / NB-IoT

Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
SIM Size & Access

Internal Nano 4FF SIM
BATTERIES

3 x AA. Batteries not included.
Battery Life Estimates

Hourly location updates – 2 years, Movement-Based location updates – 3.5 years, Once Daily location updates – 10+ years
Supported Battery Types

Alkaline Lithium (LiFeS2) – Lithium recommended for best performance *Please dispose of Lithium batteries in a safe and responsible manner
Chipset

Semtech LR1110
Constellation

Concurrent GPS / BeiDou
Cloud-Based Solver

Asset location is calculated in Digital Matter’s Location Engine
Tracking Sensitivity

-134 dBm autonomous / -141 dBm aided
GNSS Assistance

GNSS almanac data for greater sensitivity and position accuracy
Low Noise Amplifier

GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail
Cell Tower Location

Cell tower fallback for positioning when there is no GNSS or WiFi signal
Wi-Fi Positioning

Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi)
Input Voltage

3-5.5V DC
Dimensions

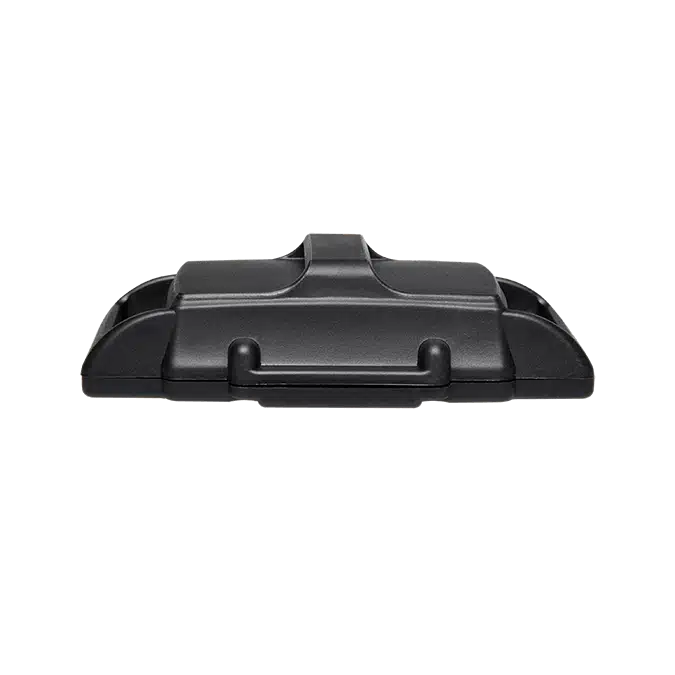

Livestock Collar – 109 x 60 x 30 (4.29 x 2.36 x 1.18″), Snap Housing (Smallest Size, not IP67 rated) – 75 x 45 x 25 mm (2.95 x 1.77 x 0.98″), Standard – 84 x 63 x 24 mm (3.31 x 2.48 x 0.94″)
Weight

Standard – 82 g (2.9 oz)
Housing

Ultra-Rugged IP67 Housing
Installation

Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Operating Temperature

-30°C to +60°C
Cellular Antenna

Internal
RF Antenna

Internal
GPS Antenna

Internal
3-Axis Accelerometer

3-Axis Accelerometer to detect movement, high G-force events, and more
Flash Memory

Store weeks of records if device is out of cellular coverage. Storage capacity for up to 5 days of continuous 30-second logging.
Diagnostic LED

Diagnostic LED indicates operation status
On-Board Temperature

The device reports internal temperature which provides an indication of ambient temperature but may not always be precise
Auto-APN

Auto-APN allows the device to analyze the SIM card and select the correct APN details from a list that is pre-loaded in the device’s firmware
Geofence Alerts

The server can use device location to create geofences and alerts if an asset enters or leaves designated locations
Run Hour Monitoring

Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization
Intelligent Power Management

Early registration abort and location scan throttling options
Preventative Maintenance

Set reminders based on distance traveled and run hours to reduce maintenance and repair costs
Theft Recovery

Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
Flexible Configuration

Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based Tracking

Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Tip Detection & Rotation Counting

Axis angle reporting, tip detection and rotation counting
Cloud-Based Solver

Digital Matter’s Location Engine makes it easy to perform cloud-based position solving and integrate data into any system
INTEGRATION

HTTPS Webhook
Device Management Platform

Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system
Configuration App

Manage device firmware updates and parameters via DM-Link provisioning tool.
Security

Military-level AES-256 Encryption from device to Device Management Platform to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty

Two-year manufacturer’s warranty.
