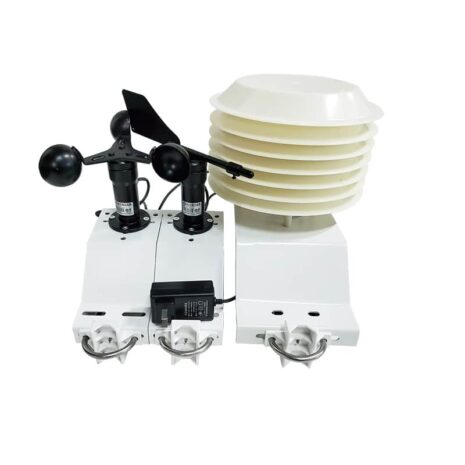

Netvox RA0730Y – Wireless Wind speed & direction sensor W/ Temperature & Humidity Sensor

Power Supply

DC12V/1A

Temperature Measurement Range

-20°C ~ 55°C

Temperature Measurement Accuracy

±1.5°C @25°C

Humidity Measurement Range

0%RH~100%RH

Humidity Measurement Accuracy

±12%RH @25°C

Wind Speed Sensor Measurement Range

0-30 m/s

Wind Direction Sensor

sixteen bearings

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)
