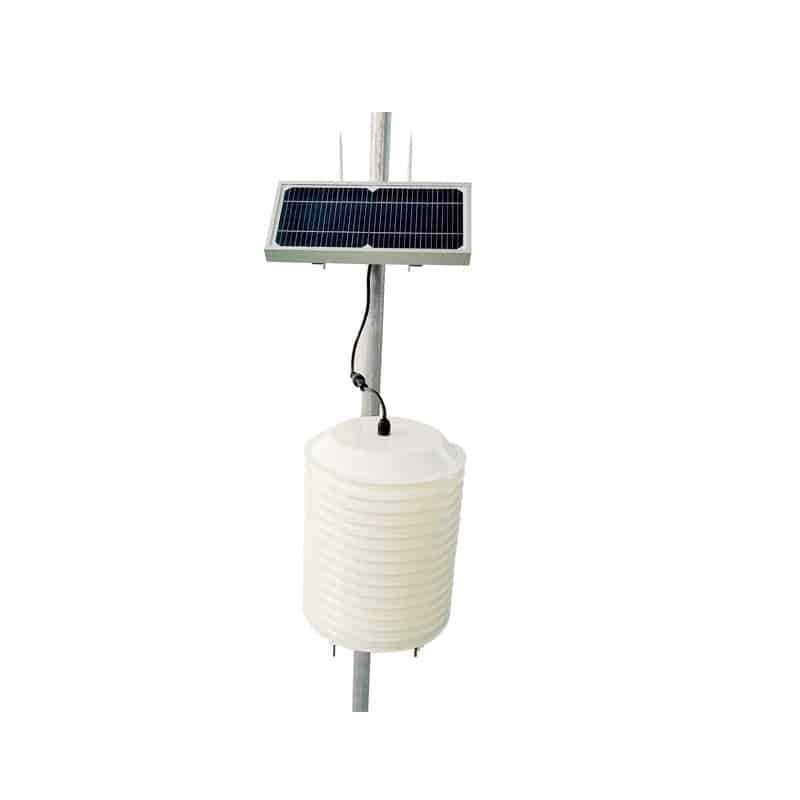

Netvox R72616-Wireless Outdoor PM2.5, Temperature, Humidity Sensor with Solar Panel
The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.
• Apply SX1276 wireless communication module
• Temperature and humidity detection
• Detecting particle concentration of the air (PM2.5)
• With solar panel charging function
• Built-in lithium battery pack power supply
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to the third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
• Low power consumption and long battery life
Electric:
|
Power supply |
3 rechargeable lithium batteries in series (each section of rechargeable lithium battery 3.7V) |
|
Operating Voltage |
9.8VDC～12.6VDC |
|
Low Voltage Warning |
10.5V |
|
Operating Current 1 |
25mA (Standby mode) |
|
Operating Current 2 |
40mA (When the sensor is working.) |
|
Solar Panel Specification |
5W/18VDC |
|
Lithium Battery Pack Charging Current |
About 300mA (ensure sufficient sunshine intensity) |
|
Temperature Measurement Range |
-20°C ~ 55°C |
|
Humidity Measurement Range |
0%RH~100%RH |
|
Particle Measurement Range |
0.3 ~ 1.0 ; 1.0 ~ 2.5um |
|
Particle Mass Concentration Resolution |
1μg/m3 |
Frequency:
|
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
|
TX Power |
US915 20dbmï¼› |
|
Receiving Sensitivity |
-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
|
Antenna Type |
Built-in antenna |
|
Communication Distance |
Up to 10 km |
|
Data Transfer Rate |
LoRa: 0.3kbps～50kbps |
|
Modulation |
LoRa/FSK (Note: You can choose one of them) |
|
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
| Dimension | Mask part: D220mm*H340mm, Solar panel size: 290mm*150mm*25mm |
| Operating Temperature Range | -20°C ~ 55°C |
| Storage Temperature Range | -40°C ~ 85°C |
| Operating Humidity Range | <90%RH (No condensation) |
Additional information
| Brand | Netvox |
|---|
