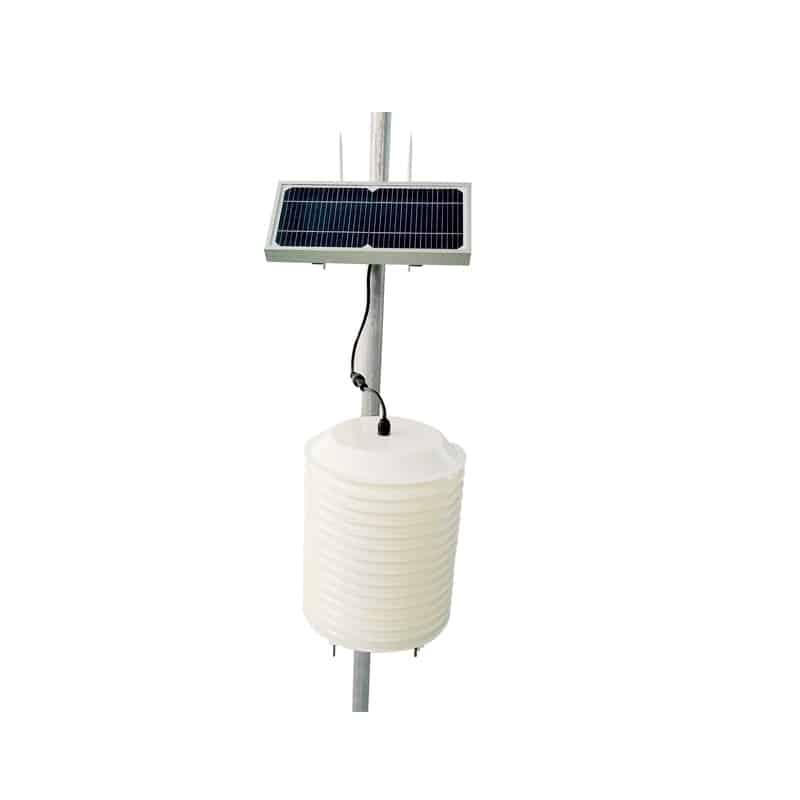

Netvox R72615 – Wireless Outdoor CO2, Temperature, Humidity Sensor with Solar Panel
The R72615 is equipped with a temperature and humidity sensor that detects and transmits ambient
temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless
communication module. The R72615 has a CO2 sensor that detects the concentration of CO2 in the air.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
The R72615 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72615 has a CO2 sensor that detects the concentration of CO2 in the air.
- LoRaWAN™ compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Uses SX1276 wireless communication module
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Electric:
| Power Supply | 3 rechargeable lithium batteries in series (single-cell rechargeable lithium battery 3.7V, capacity recommended 5000mah) |
| Operating Voltage Range | 9.8VDC ~ 12.6VDC |
| Operating Current 1 | 15mA (Standby mode) |
| Operating Current 2 | 30mA (When the sensor is working.) |
Frequency:
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | 10 km (line-of-sight, the actual transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928，KR920-923，AS923，CN470-510 Configured before shipment |
Physical:
| Dimension | Mask body: D220mm*H340mm, Solar panel size: 290mm*150mm*25mm |
| Operating Temperature Range | -20℃ ～ 55℃ |
| Operating Humidity Range | < 90%RH (no condensation) |
| Storage Temperature range | -40℃ ～ 85℃ |
Additional information
| Brand | Netvox |
|---|
