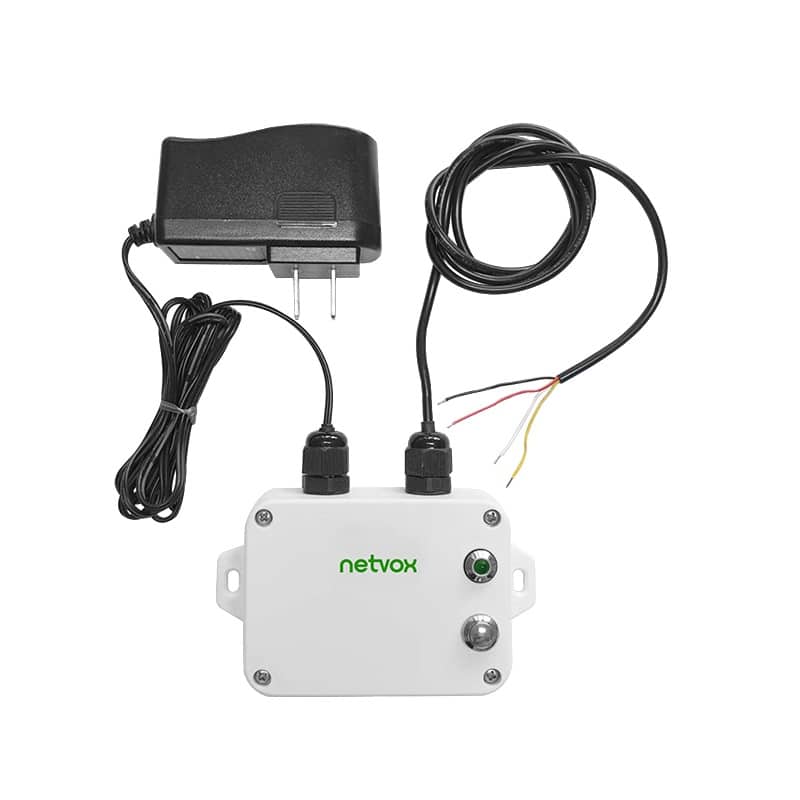

Netvox R718PDA-Wireless RS232 Adapter

651د.إ inc. VAT

This device only supports RS232 serial port transparent transmission (RS232sensor power supply is DC12V), which can send read commands to the sensor supporting RS-232 protocol according to the configured cycle time. The information of sensor reply will be directly reported to the gateway, and displayed in the interface on the gateway. It uses SX1276 wireless communication.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R718PDA Categories: , ,

Description

  • Adopt SX1276 wireless communication module
  •  DC 12V adapter power supply
  •  Main Unit Protection level IP65/IP57 (optional)
  •  The base is attached with a magnet that can be attached to a ferrous object
  •  RS232 serial port transparent transmission
  •  Compatible with LoRaWANâ„¢ Class C
  •  Frequency hopping spread spectrum technology
  •  Configuring parameters and reading data via third-party software platforms, and set alarms via SMS text and email (optional)
  •  Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Electric:

Power Supply DC 12V
Operating Current Less than 45mA (without external device)

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension L:112mm*W:88.19mm*H:32mm
Weight 160g
Ambient Temperature Range -20°C ～ +55°C
Storage Temperature Range -40°C ～ +85°C
Ambient Humidity Range ＜90%RH (noncondensing)
