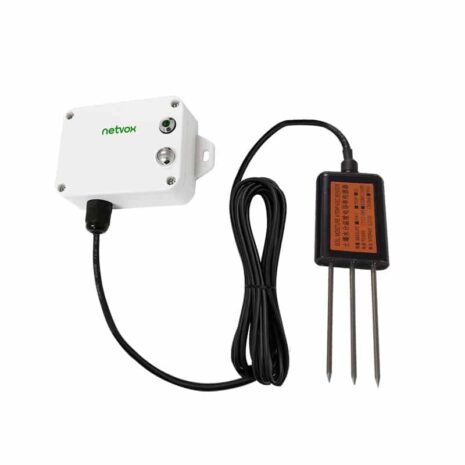

Netvox R718PB15 – Wireless Soil Moisture, Temperature and Electrical Conductivity Sensor

The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through a wireless network. The SX1276 wireless communication method is adopted .

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R718PB15 Categories: , ,

Description

The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through a wireless network. The SX1276 wireless communication method is adopted .

  • Adopt SX1276 wireless communication module
  • 2 ER14505 batteries AA SIZE (3.6V / section) parallel power supply
  • Main unit protection level IP65
  • The base is equipped with a magnet that can be attached to a ferrous object ( optional )
  • Soil moisture detection
  • Soil temperature detection
  • Soil electrical conductivity
  • Compatible with LoRaWANTM Class A
  • Frequency hopping spread spectrum technology
  • Configuration parameters can be configured through a third-party software platform, data can be read and alerts can be set via SMS text and email (optional)
  • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenn
  • Low power consumption, longer battery life support

*: Battery life is determined by sensor reporting frequency and other variables

Electric:

Power supply 2 ER14505 lithium batteries
(3.6 V, 2400mAh /section) in parallel
Battery life Battery life is about 2.7 years
(condition: ambient temperature 25 ° C, 60 min report once, txpower = 20 dBm , LoRa spreading factor SF = 10)
Sleep current 20uA
Awakening current 6.3mA @3.3V
RF emission current 120mA @3 .3 V
RF receiving current [email protected]
Battery measurement accuracy ± 0.1V

Frequency:

Frequency range 863MHz-928MHz 470MHz-510MHz
Power output US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›
Receiving sensitivity -136dB
(LoRa, Spreading Factor=12, Bit Rate = 293bps);
-121 dBm
( FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna type Built-in antenna
Communication distance Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data transfer rate 0.3kbps to 50k bps
Modulation system mode LoRa/F SK (Note: You can choose one of them)
Supportable LoRaWAN band EU863- 870 , US 902-928 , AU915-928 , KR920-923 , AS923 , CN470-510
(Note: The frequency band is optional and needs to be configured shipment)

Physical:

Size L: 112 mm *W: 88.19 mm *H: 32 mm
Ambient temperature range – 20 °C to 55 °C
Body weight About 160g
Ambient humidity range <90% RH (no condense)
Storage temperature range -40 °C ~ 85 °C
