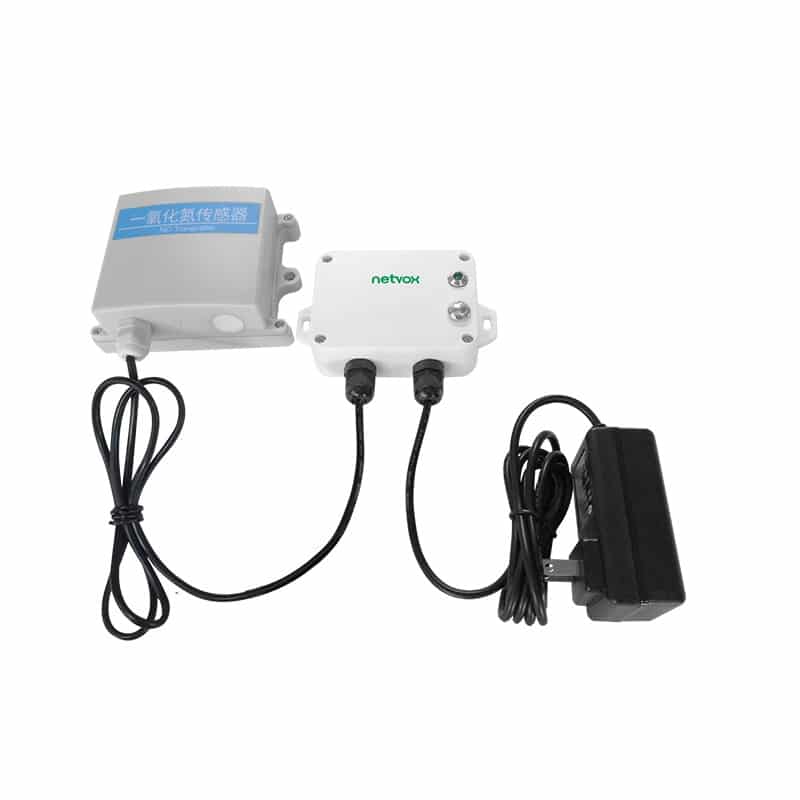

Netvox R718PA2 – Wireless NO Sensor
The R718PA2 is a wireless communication device that detects the NO content in ambient air. R718PA2 can detect the concentration of NO in the air. The main unit and NO sensor are connected via RS485 interface, and the detected data is transmitted to other devices through the wireless network. It adopts the wireless communication method conforming to the LoRa TM protocol standard.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
The R718PA2 is a wireless communication device that detects the NO content in ambient air. R718PA2 can detect the concentration of NO in the air. The main unit and NO sensor are connected via RS485 interface, and the detected data is transmitted to other devices through the wireless network. It adopts the wireless communication method conforming to the LoRa TM protocol standard.
- Adopt SX1276 wireless communication module
- DC 12V adapter power supply
- Main Unit protection class IP65
- The base is equipped with a magnet that can be attached to the iron object
- RS485 communication
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum technology
- Configuration parameters can be configured through third-party soft platforms
- Data can be read and alerts can be set via SMS text and email (optional)
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Electric:
| Power supply | DC 12V adapter power supply |
| Working current | 50mA (external sensor) |
Frequency:
| Frequency range | 863MHz-928MHz  470MHz-510MHz |
| Power output | 19 dBm ±1dBm |
| Receiving sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate = 293bps); -121 dBm ( FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna type | Built-in antenna |
| Communication distance | Up to 10 km (visible linear obstacle-free transmission distance, actual transmission distance depends on the environment) |
| Data transfer rate | 0.3kbps to 50k bps |
| Modulation system mode | LoRa/FSK (Note: choose one of them) |
| Supportable LoRaWAN band | EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510 (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
| Main uni size | L: 112 mm*W: 88.19 mm*H: 32 mm, |
| Ambient temperature range | – 2 0 °C to 5 5 °C |
| Main unit weight | About 160g |
| Ambient humidity range | <90% RH (no condense) |
| Storage temperature range | – 40 °C ~ 85 °C |
Additional information
| Brand | Netvox |
|---|
