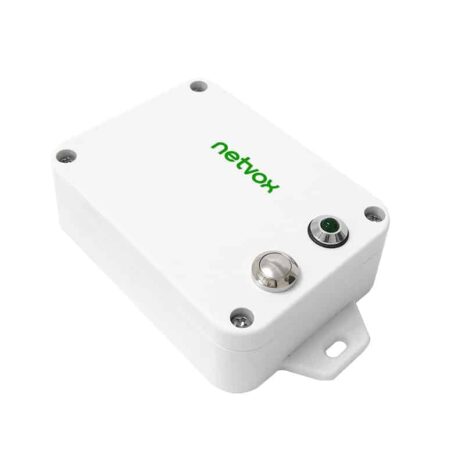

Netvox R718MBB – Wireless Activity Vibration Counter
The device detects the number of movements or vibrations (such as detecting the motor a few times a day), the maximum number of movements or vibrations can reach 232 times (theoretical value), and sends the information of the number of movements or vibrations to the gateway for processing. Apply SX1276 wireless communication module.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
The device detects the number of movements or vibrations (such as detecting the motor a few times a day), the maximum number of movements or vibrations can reach 232 times (theoretical value), and sends the information of the number of movements or vibrations to the gateway for processing. Apply SX1276 wireless communication module
• Wireless range of 10km *1
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional).
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables.
Electric:
|
Input Power |
2 x 3.6V ER14505 AA lithium batteries |
|
Sleeping Mode |
76 uA |
|
Wake up Mode |
|
|
Receiving Current (max) |
11mA @3.3V |
|
Transmitting Current (max) |
120mA/3.3V |
|
Battery Voltage Measurement |
±0.1V |
|
Low Voltage Threshold |
3.2V |
Frequency:
|
TX Power |
19dBm±1dBm |
|
Rx Sensitivity |
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) |
|
Antenna Type |
Build-in antenna |
|
Communication Range |
10 km (line-of-sight, the actual transmission distance depends on the environment) |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Spread Technique |
LoRa/FSK |
|
Available Frequency |
US915Â Â Â Â Â Â AU915Â Â Â Â Â Â AS923 EU868Â Â Â Â Â Â KR920Â Â Â Â Â Â CN470 |
Physical:
|
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
|
Weight |
141g |
|
Environment Temperature Range |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RHÂ (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
|
IP Rating (Main Part) |
IP67 |
|
IP Rating (External Sensor) |
IP67 |
Additional information
| Brand | Netvox |
|---|
