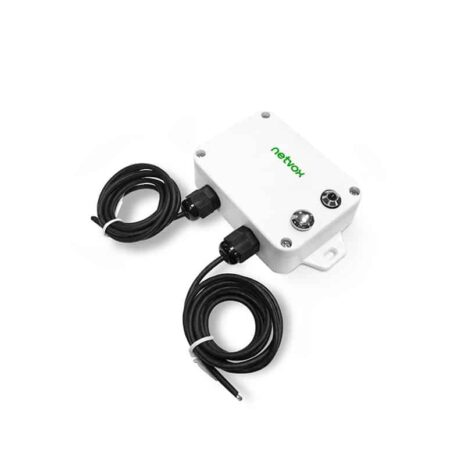

Netvox R718IB2 – Wireless 2-Input 0-10V ADC Sampling Interface
This device can be connected to an ADC sampling interface device. As shown in the figure, black is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-10V. It uses the SX1276 wireless communication module. The wireless communication is compatible with LoRaWANâ„¢ protocol (ClassA).
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
•Wireless range of 10km *1
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Electric:
|
Input Power |
2 x 3.6V ER14505 AA lithium batteries |
|
Sleeping Mode |
27uA |
|
Wake up Mode |
|
|
Receiving Current (max) |
11mA @3.3V |
|
Transmitting Current (max) |
120mA/3.3V |
|
Battery Voltage Measurement |
±0.1V |
|
Low Voltage Threshold |
3.2V |
Frequency:
|
TX Power |
19dBm±1dBm |
|
Rx Sensitivity |
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) |
|
Antenna Type |
Build-in antenna |
|
Communication Range |
10 km (line-of-sight, the actual transmission distance depends on the environment) |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Spread Technique |
LoRa/FSK |
|
Available Frequency |
US915Â Â Â Â Â Â AU915Â Â Â Â Â Â AS923 EU868Â Â Â Â Â Â KR920Â Â Â Â Â Â CN470 |
Physical:
|
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
|
Weight |
150g |
|
Environment Temperature Range |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RHÂ (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
|
IP Rating (Main Part) |
IP67 |
|
IP Rating (External Sensor) |
IP65 |
Additional information
| Brand | Netvox |
|---|
