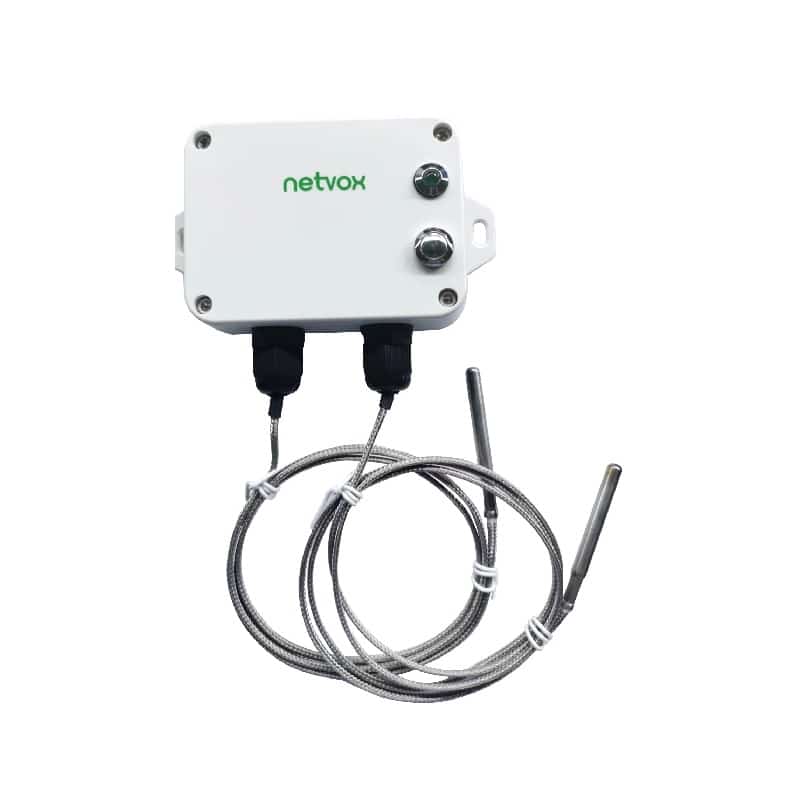

Netvox R718B240 – Wireless 2-Gang Temperature Sensor- PT1000 Round Head Probe(-40°~375°)
R718B240 is a device used to detect object temperature. It can connect PT1000 platinum
thermistor and join the gateway to display the collected data in the gateway.
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
R718B240 is a device used to detect object temperature. It can connect PT1000 platinum thermistor and join the gateway to display the collected data in the gateway.
• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• Temperature detection
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life
Electric:
| Power Supply | 2×3.6V ER14505 lithium batteries |
| Operating Voltage | 3.1v to 3.65 |
| Standby Current | <29uA |
| Receiving Current (max) | 11mA @3.3V |
| Transmitting Current (max) | 120mA/3.3V |
| Battery Voltage Accuracy | ±0.1V |
| Low Voltage Threshold | 3.2V |
| Temperature Measurement Range | -40°C to 375°C |
| Wire Length | 2m |
| Probe Dimension | 5mm in diameter * 30mm in length, round head probe |
Frequency:
|
Frequency Range |
863MHz-928MHz 470MHz-510MHz |
|
TX Power |
US915 20dbm； |
|
Receiving Sensitivity |
-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； |
|
Antenna Type |
Built-in antenna |
|
Communication Distance |
Up to 10 km |
|
Data Transfer Rate |
LoRa: 0.3kbps～50kbps |
|
Modulation |
LoRa/FSK (Note: You can choose one of them) |
|
Supportable LoRaWAN Band |
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, (Note: The frequency band is optional and needs to be configured before shipment) |
Physical:
| Dimension | Host body:112mm*89.19mm*32mm |
| Operating Temperature Range | -20°C ~ 55°C |
| Operating Humidity Range | <90%RH (No condensation) |
Additional information
| Brand | Netvox |
|---|
