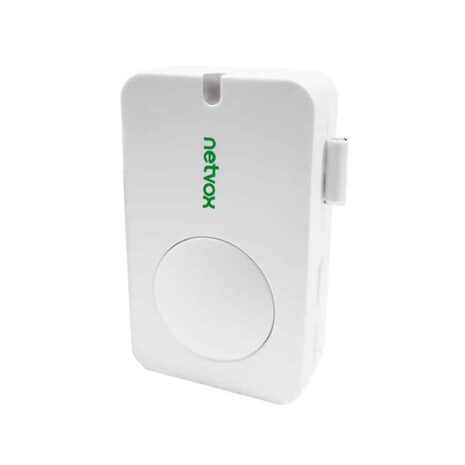

Netvox R313FA – Wireless Activity Detection Sensor

273د.إ inc. VAT

It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R313FA Categories: , ,

Description

It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.

•LoRaWANTM Class A compatible
•2*3.0V CR2450 button battery power supply
•Vibration status detection
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Input Power 2pcs 3.0V CR2450 button battery
Working Voltage DC 2.4V～3.0V
Standby Current 40uA /3.0V
Transmitting Current (max) 120mA / 3.0V
Receiving Current (max) 11mA / 3.0V
Battery Voltage Measurement Accuracy ±0.1V

Frequency:

Frequency Range 863MHz-928MHz 470MHz-510MHz
TX Power US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›
Rx Sensitivity -136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type External antenna
Communication Range Up to10 km, the actual transmission distance depends on the environment.
Data Transfer Rate 0.3kbps～50kbps
Spread Technique LoRa/FSK
Available Frequency EU863-870，US902-928，AU915-928，
KR920-923，AS923，CN470-510
Configured before shipment

Physical:

Main Body Dimension 57mm x 38.05mm x 15.2mm
Weight 48.9 g
Operating Temperature -20°C ~ 55°C
Environment Humidity Range <90% RH (No condensation)
Storage Temperature -40℃ ～ 85°C
