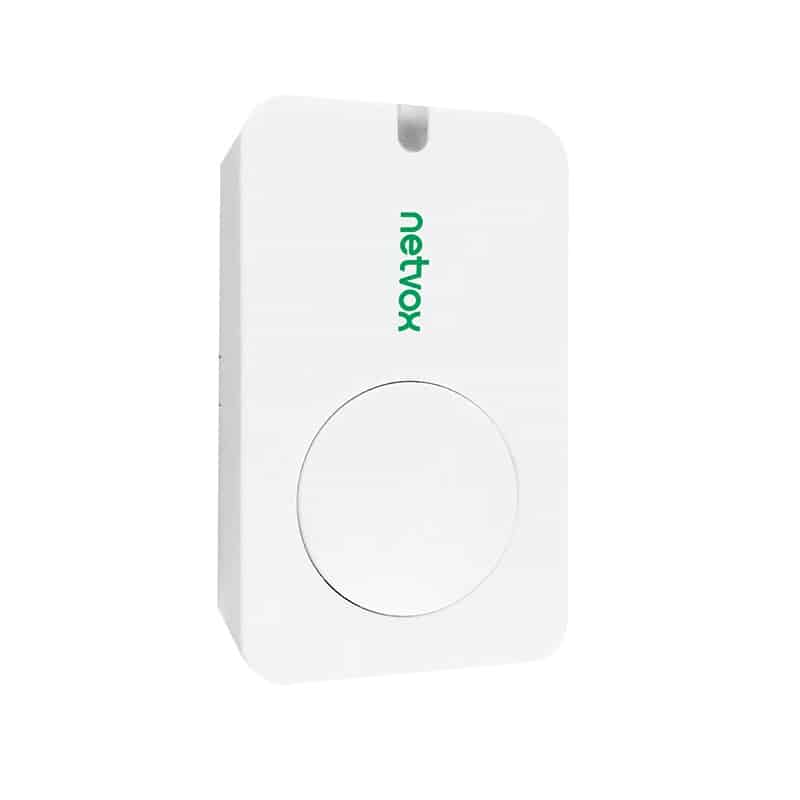

Netvox R311FB – Wireless Activity Event Counter

The device detects the number of movements or vibrations (such as detecting the motor a few times a day), the maximum number of movements or vibrations can reach 2^32 times (theoretical value), and sends the information of the number of movements or vibrations to the gateway for processing. Apply SX1276 wireless communication module.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R311FB Categories: , ,

Description

The device detects the number of movements or vibrations (such as detecting the motor a few times a day), the maximum number of movements or vibrations can reach 2^32 times (theoretical value), and sends the information of the number of movements or vibrations to the gateway for processing. Apply SX1276 wireless communication module.

• Adopt SX1276 wireless communication module
• 2 x 3.0V CR2450 button batteries
• Vibration counter detection
• Compatible with LoRaWAN™ Class A
• Frequency Hopping Spread Spectrum (FHSS)
• Configuration parameters can be configured through a third-party software platform
• Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
• Low power consumption and long battery life Improved



Electric:

Input Power 2pcs 3.0V CR2450 button battery
Working Voltage DC 2.4V～3.0V
Standby Current 41 uA /3.0V
Transmitting Current (max) 120 mA / 3.0V
Receiving Current (max) 11 mA / 3.0V
Battery Voltage Measurement Accuracy ±0.1V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Dimension 57 mm x 35 mm x 15.2 mm
Operating Temperature -20℃ to 55℃
Weight 48.9g
Storage Temperature Range -40℃ to 85℃
Environment Humidity Range <90%RH (No condensation)
