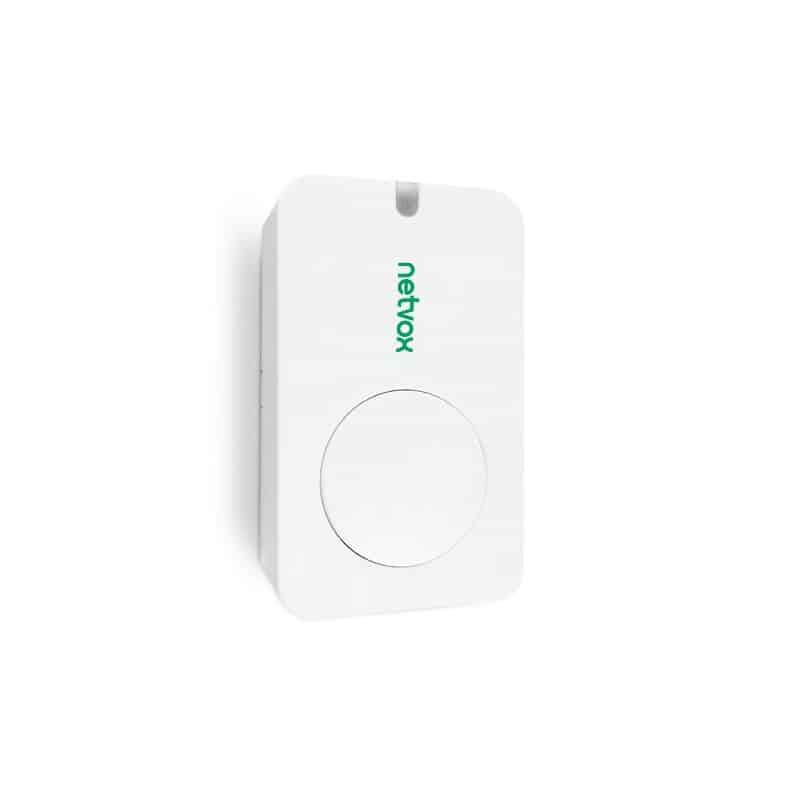

Netvox R311D – Wireless Asset Sensor

The device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R311D Categories: ,

Description

The device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module.

•LoRaWAN™ Class A compatible
•2*3.0V CR2450 button battery power supply
•RSSI / SNR detection
•Apply SX1276 wireless communication module
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved

Electric:

Input Power 2pcs 3.0V CR2450 button battery
Working Voltage DC 2.4V～3.0V
Standby Current 16uA /3.0V
Transmitting Current (max) 120mA / 3.0V
Receiving Current (max) 11mA / 3.0V
Battery Voltage Measurement Accuracy ±0.1V

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension 57mm x 35mm x 15.2mm
Weight 48.9 g
Operating Temperature -20℃ ～ 55℃
Environment Humidity Range <90% RH (No condensation)
Storage Temperature -40℃ ～ 85℃
