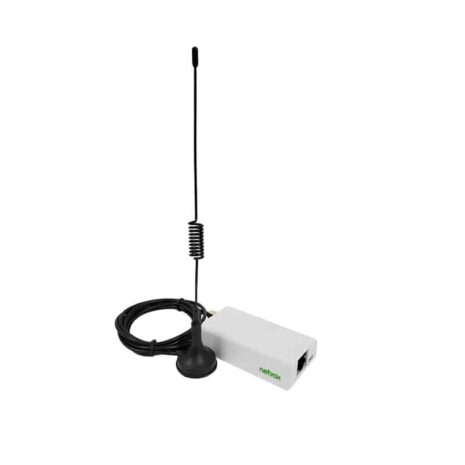

Netvox R207C-Wireless IoT Controller with external antenna

R207C is a highly reliable wireless smart cloud gateway. As the core of the entire wireless
smart IoT system, R207C achieves the combination of cloud technology and LoRa wireless
IoT technology.
The Netvox APP (Android and iOS) can control the device. Users can also monitor all
changes in the network by accessing R207C through the cloud, and easily realize real IoT
remote control to achieve energy saving, carbon reduction, and green environmental
protection.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping On all orders over 1000 AED
  • Visa Card
  • MasterCard
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: R207C Categories: ,

Description

• Support Netvox LoRa proprietary protocol wireless networkSupport Netvox Cloud
• Support Netvox Cloud
• Support Gateway mode
• One RJ-45 data interface
• LoRa communication distance 10km (in an open space)

Electric:

Working Power

Input:100～240V AC
Output:5V/1A DC

Power Consumption

5V/0.12A/0.6W (typical value)

Frequency:

Frequency Range 410-525MHz
862-1020MHz
(User can select the desired frequency band)
Communication Channel Users can choose according to their needs
Bandwidth 125k Hz
Antenna Type External antenna
TX Power US915 20dbmï¼›
AS923 16dbmï¼›
AU915 20dbmï¼›
CN470 19.15dbmï¼›
EU868 16dbmï¼›
KR920 14dbmï¼›
IN865 20dbmï¼›
Communication Distance Up to 10 km, the actual transmission distance depends on the environment.
Rx Sensitivity -136dBm
(LoRa，Spreading Factor=12, Bit Rate=293bps)
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Data Transfer Rate 0.3～50kbps (it can be set according to requirements )
Modulation LoRa/FSK

Physical:

Dimensions 76.5mm * 37.0mm * 22.0mm
Shell Material PC510
Operating Temperature -10℃～50℃
Storage Temperature -20℃～60℃
Working Humidity 0～95%RH
Storage Humidity 0～95%RH
