Featuring dual 5.25” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-25RW LCR brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
Features:
Dual 5.25” Injection Molded Graphite (IMG) Woofer
1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
Exclusive, modular SecureFit™ Installation System
Bezel-Free square and round paintable magnetic grilles
Magnetic paint shield
TRUE REFERENCE ACOUSTICS
Using the same acoustic components and horn material as the highly
acclaimed Klipsch Reference box speaker line, the Professional
Reference Architectural series perfectly combines the aesthetics of
an architectural speaker with the pure performance and dynamic
voicing of the Klipsch Reference series. With a dual 5.25” IMG woofer
and a 1” Aluminum Dome Tweeter mated to a 90°x90° Tractrix®
horn, the Pro-25RW LCR brings dynamic, powerful, detailed Klipsch
Reference sound to your home theater system.
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.
CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.

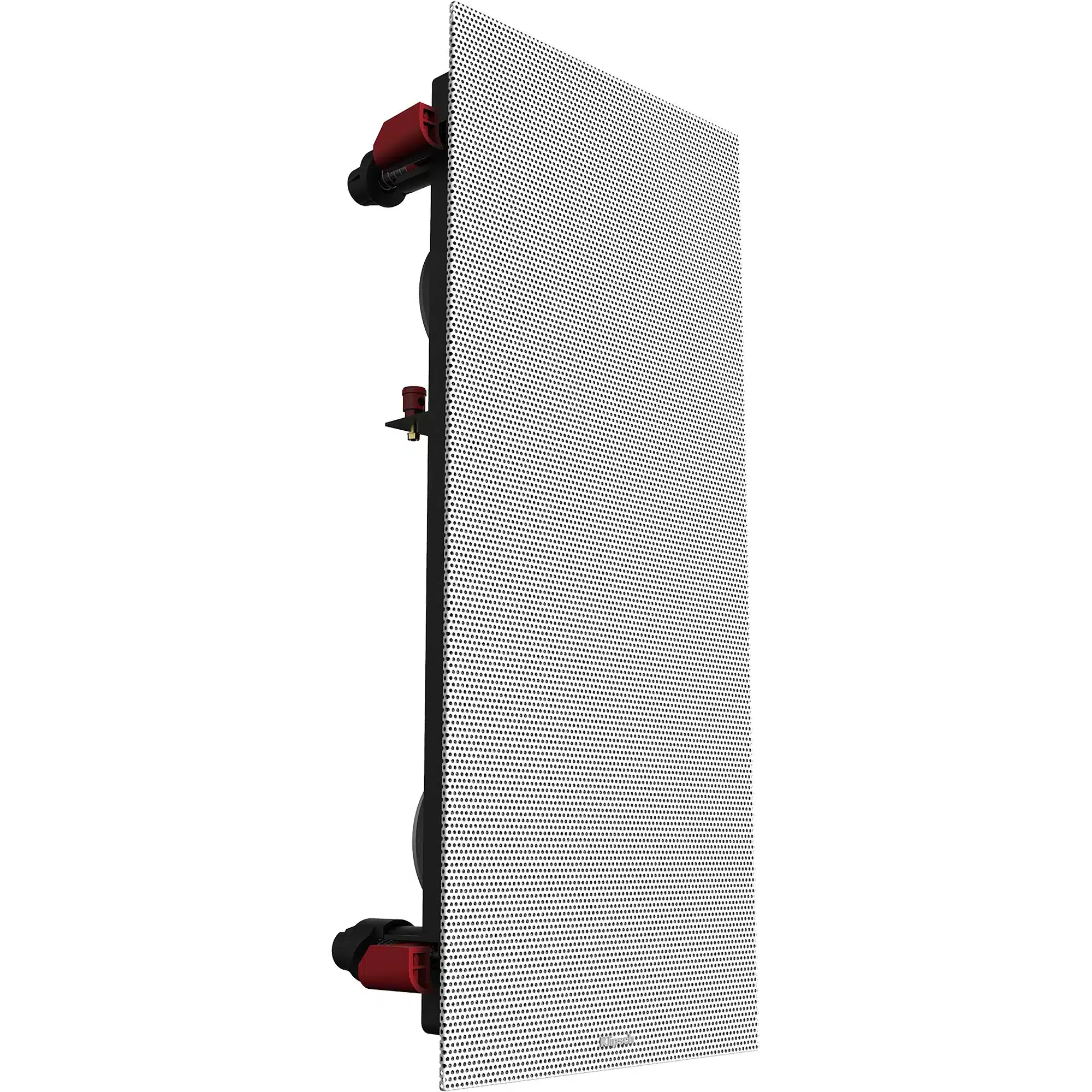

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels
SPECIFICATIONS
Frequency Range
56Hz – 23kHz +/- 3dB
High Frequency Driver
1″ (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency Driver
Dual 5.25″ (13.34cm) IMG Woofers
Sensitivity
93 dB @ 2.83V / 1m
Coverage Angle
90° x 90°
Power Handling
75W RMS / 300W Peak
Impedance
8 Ohm Compatible
Enclosure Type
ABS/Infinite Baffle
Finish
Black Baffle/Frame, White Paintable Grille
Product Dimensions
7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D)
Mounting Depth
3.78” (9.35cm)
Cutout Dimensions
16.5” H X 6.5” W (41.9cm H X 16.5cm W)
Product Weight
6.5lbs (2.95kg)
Included
Grille, Paint Shield
Installation Kit
IK-502-W II or IK-502-W (Sold Separately)
Built From
2017
Additional information
Weight
2.95 kg
Dimensions
9.6 × 44.2 × 19.1 cm
Frequency Response
52Hz – 23kHz +/- 3dB
Sensitivity
93 dB @ 2.83V / 1m
Power Handeling (Cont/Peak)
75W RMS / 300W Peak
Nominal Impedance
8 ohm compatible
High Frequency Driver
1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency Driver
Dual 5.25" (13.34cm) IMG Woofers
Enclosure Type
ABS/Infinite Baffle
Accessories
Grille, Paint Shield
Brand
Klipsch
