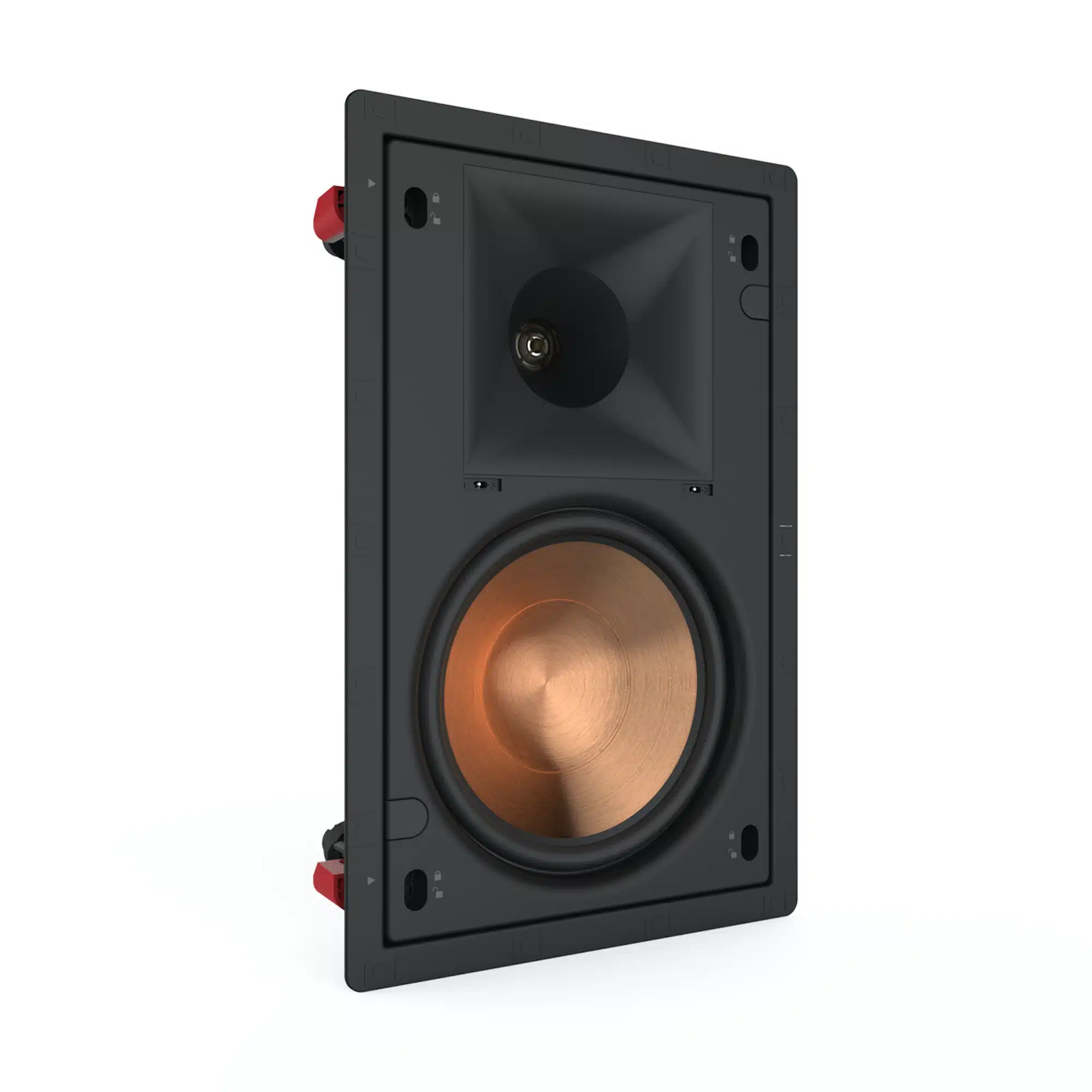

With an 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® horn, the PRO-180RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.
Features:
8″ Cerametallic Woofer
1″ Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
Exclusive, modular SecureFit™ Installation System
Paintable, magnetic grille included
TRUE REFERENCE PREMIERE ACOUSTICS
Using the same acoustic components and horn material as the highly
acclaimed Reference Premiere box speaker line, the Professional
Reference Premiere Architectural series perfectly combines the
aesthetics of an architectural speaker with the pure performance
and dynamic voicing of the Reference Premiere series. With an 8”
Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a
composite coated Hybrid Cross Section Tractrix® horn, the
Pro-180RPW brings dynamic, powerful, detailed Reference Premiere
sound to your distributed audio or home theater system.
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.
SPECIFICATIONS
Frequency Range
52Hz – 23kHz +/- 3dB
High Frequency Driver
1″ (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
Low Frequency Driver
8″ (16.51cm) Cerametallic Woofer
Sensitivity
96 dB @ 2.83V / 1m
Coverage Angle
90° x 90°
Power Handling
50W RMS / 200W Peak
Impedance
8 Ohm Compatible
Enclosure Type
ABS/Infinite Baffle
Finish
Black Baffle/Frame, White Paintable Grille
Product Dimensions
10.16” W x 15.75” H x 4.0” D (25.8cm H x 40.0cm W x 10.1cm D)
Mounting Depth
3.9” (9.9cm)
Cutout Dimensions
14.8” H X 9.25” W (37.5cm H X 23.5cm W)
Product Weight
7.9lbs (3.6kg)
Included
Grille, Paint Shield
Installation Kit
IK-800-W (Sold Separately)
Built From
2017
Additional information
Weight
3.6 kg
Dimensions
10.1 × 40 × 25.8 cm
Frequency Response
52Hz – 23kHz +/- 3dB
Sensitivity
96 dB @ 2.83V / 1m
Power Handeling (Cont/Peak)
50W RMS / 200W Peak
Nominal Impedance
8 ohm compatible
High Frequency Driver
1" (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
Low Frequency Driver
8" (16.51cm) Cerametallic Woofer
Enclosure Type
ABS/Infinite Baffle
Accessories
Grille, Paint Shield
Brand
Klipsch
