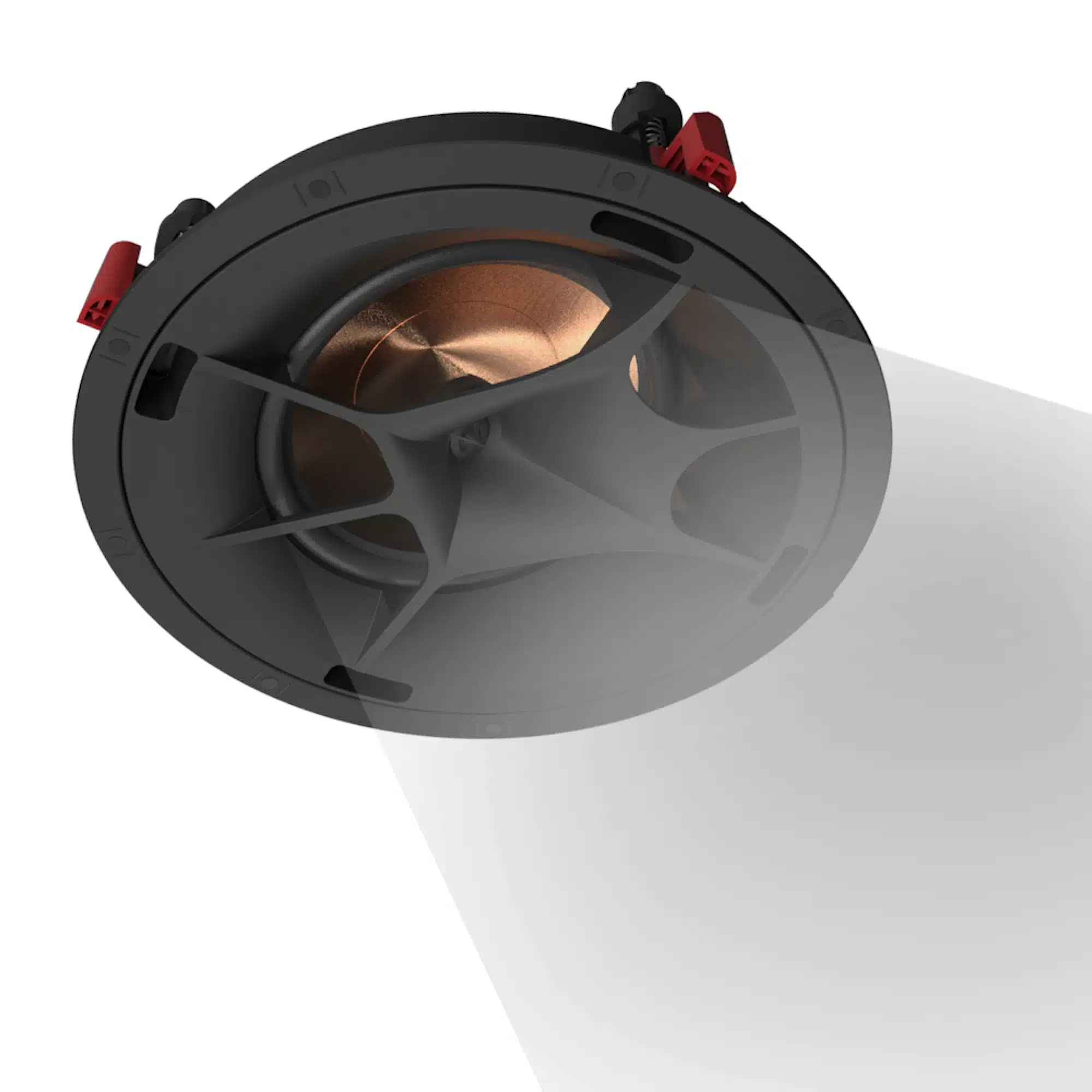

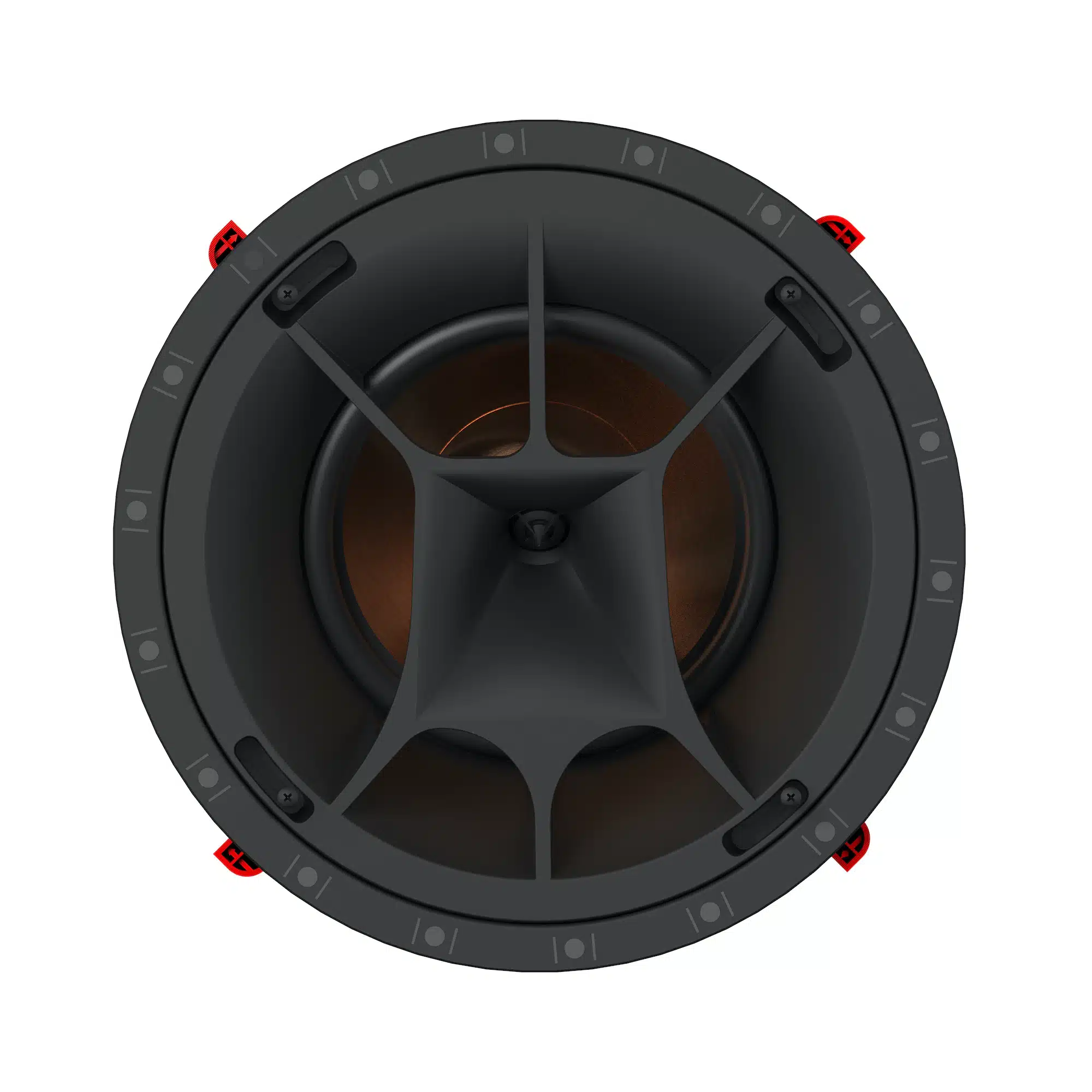

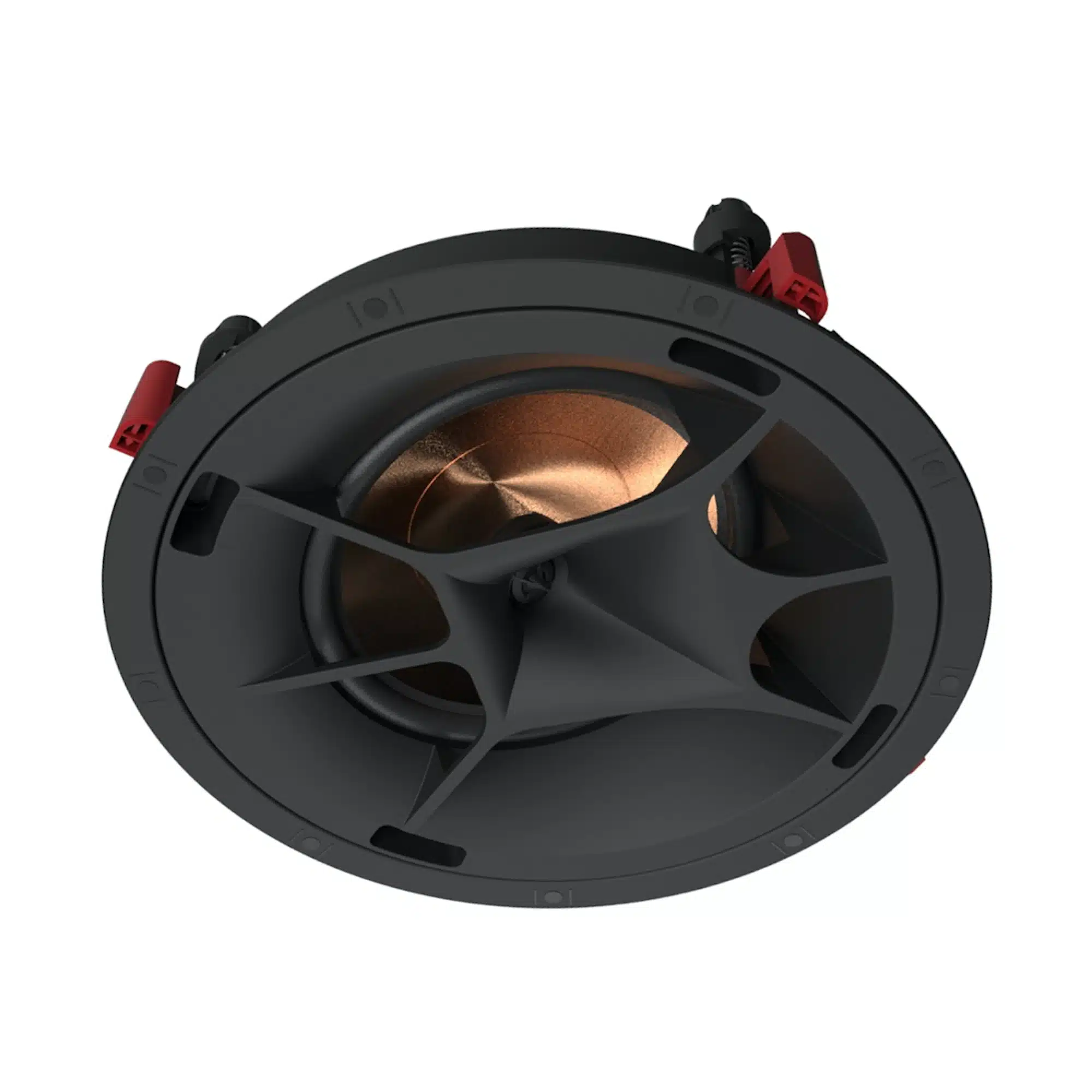

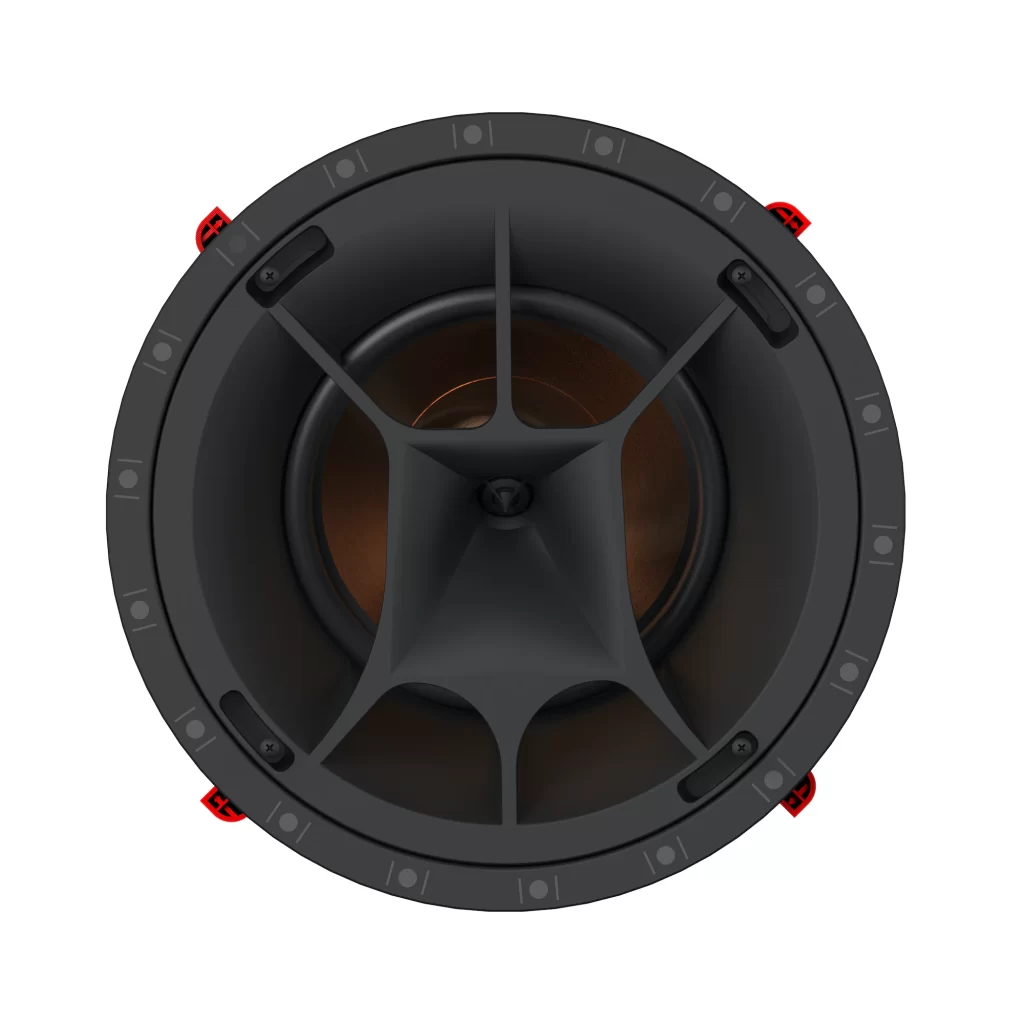

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 45°angled 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to an FEA optimized Tractrix® horn, the Pro-180RPC LCR brings incredible versatility and dynamic, powerful Reference Premiere sound to your home theater system.
Features:
45° angled 8″ Cerametallic Woofer
45° angled 1″ Titanium Dome Tweeter mated to a FEA optimized Tractrix® Horn
Exclusive, modular SecureFit™ Installation System
Round and square paintable, bezel-free magnetic grilles included
TRUE REFERENCE PREMIERE ACOUSTICS
Using the same acoustic components and horn material as
the highly acclaimed Reference Premiere box speaker line, the
Professional Reference Premiere Architectural series perfectly
combines the aesthetics of an architectural speaker with the
pure performance and dynamic voicing of the Reference Premiere
series. With an 8” Cerametallic woofer and a 1” Titanium Dome
Tweeter mated to a FEA optimized Tractrix® horn, the Pro-180RPC
LCR brings dynamic, powerful, detailed Reference Premiere sound
to your home theater system.
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the
living space.

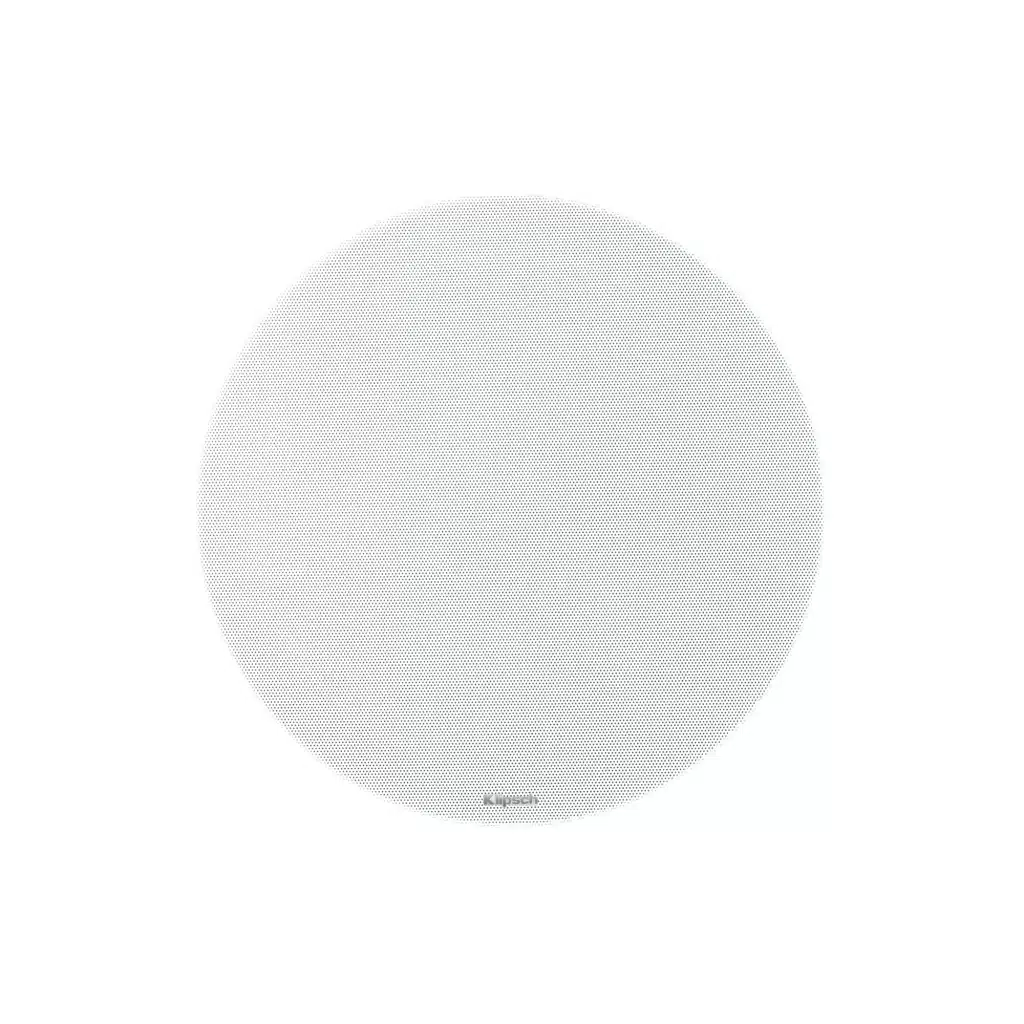

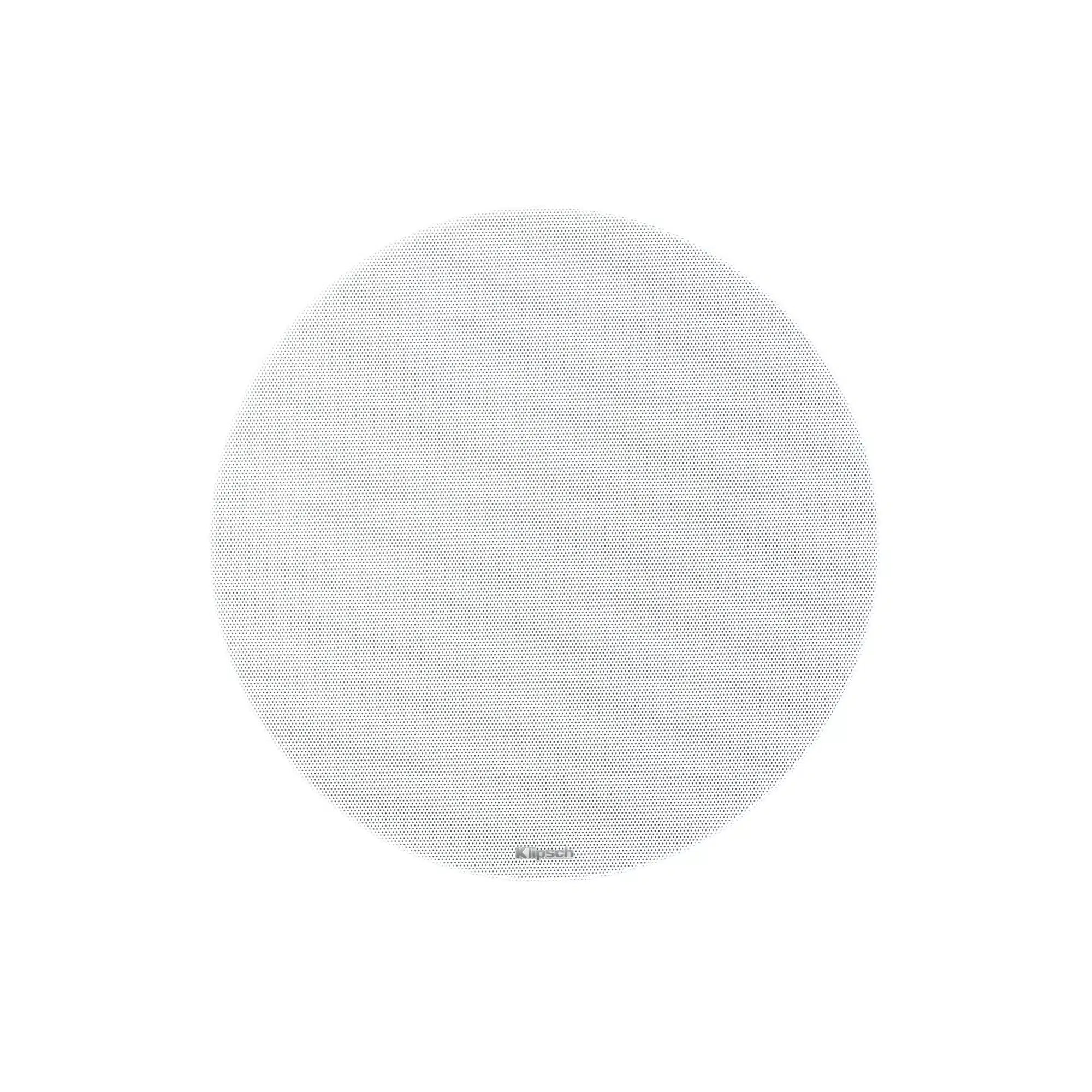

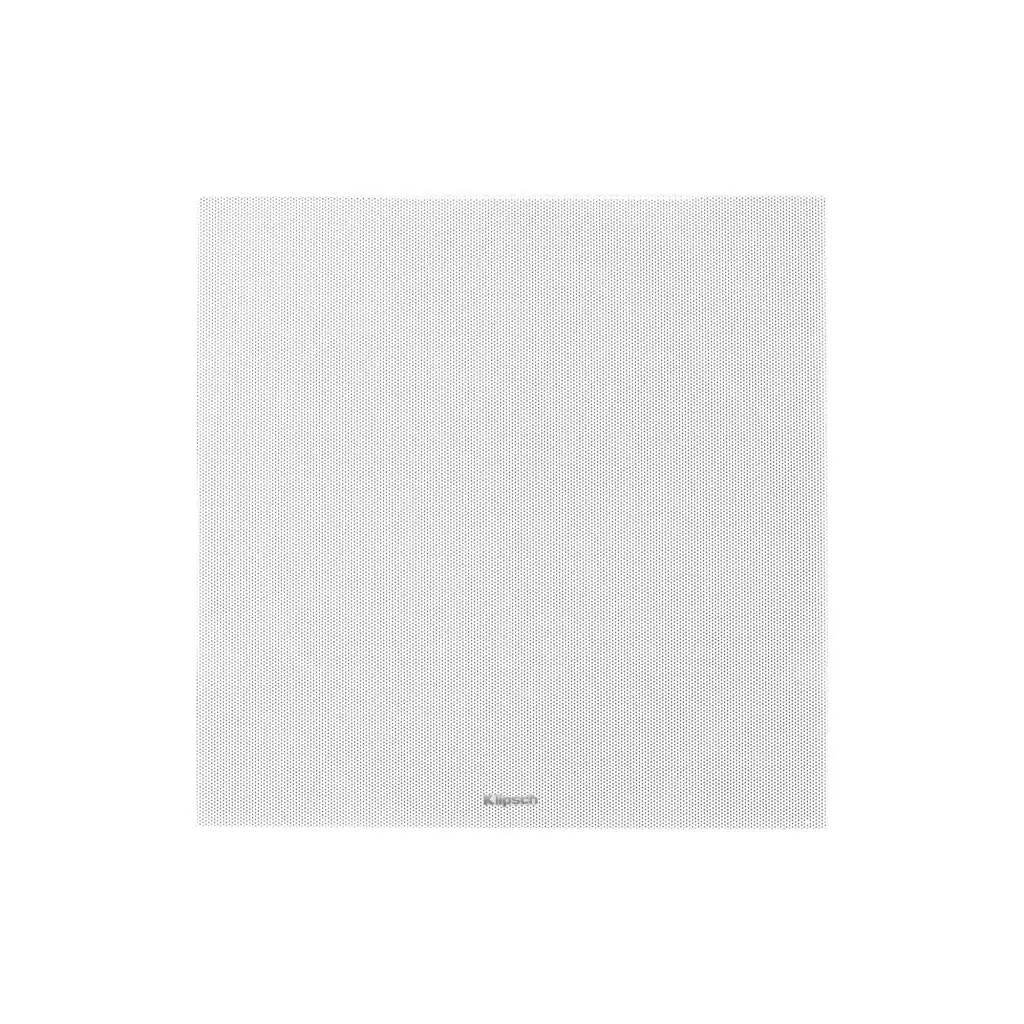

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but blend
in seamlessly with even the most luxurious interior designs. The
Professional Series Reference Premiere in-ceiling speakers include
both round and square grilles in the box, so they look great in any
space right out of the box.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.
SPECIFICATIONS
Frequency Range
52Hz – 23kHz +/- 3dB
High Frequency Driver
1″ (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45°
Low Frequency Driver
8″ (16.51cm) Cerametallic Woofer, Angled 45°
Sensitivity
96 dB @ 2.83V / 1m
Coverage Angle
90° x 90°
Power Handling
50W RMS / 200W Peak
Impedance
8 Ohm Compatible
Enclosure Type
ABS/Infinite Baffle
Finish
Black Baffle/Frame, White Paintable Grille
Product Dimensions
15.25” W x 15.25” H x 5.45” D (38.7cm H x 38.7cm W x 13.8cm D)
Mounting
5.68″ (14.4cm)
Cutout Dimensions
11.57″ (29.4cm)
Product Weight
8.4lbs (3.8kg)
Included
Round Grille, Square Grille, Paint Shield
Installation Kit
IK-810-C (Sold Separately)
Built From
2017
Additional information
Weight
3.8 kg
Dimensions
13.8 × 38.7 × 38.7 cm
Frequency Response
52Hz – 23kHz +/- 3dB
Sensitivity
96 dB @ 2.83V / 1m
Power Handeling (Cont/Peak)
50W RMS / 200W Peak
Nominal Impedance
8 ohm compatible
High Frequency Driver
1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45°
Low Frequency Driver
8" (16.51cm) Cerametallic Woofer, Angled 45°
Enclosure Type
ABS/Infinite Baffle
Accessories
Round Grille, Square Grille, Paint Shield
Brand
Klipsch
