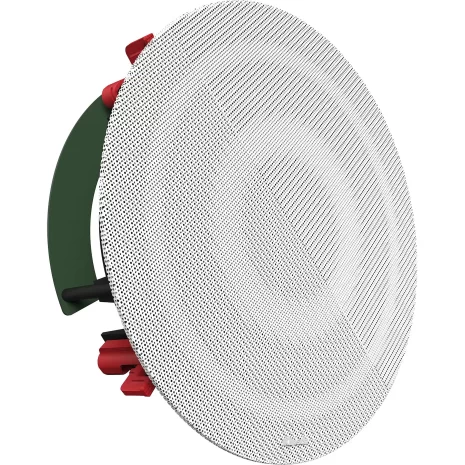

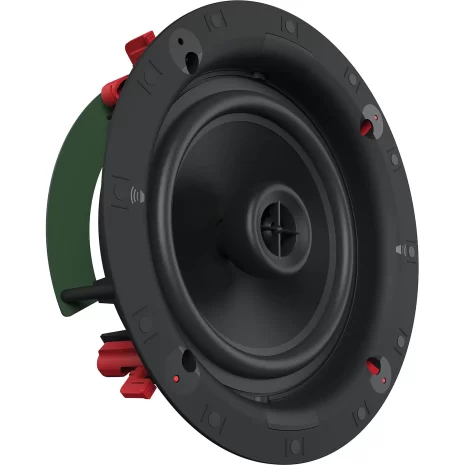

Klipsch DS-180CDT Designer Series In-Ceiling Speaker
Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features an 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features:
- 8” Pivot Polypropylene woofer
- 1” Pivot Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
Brand: Klipsch
Available on backorder
- Estimated Delivery : Up to 4 business days
- Free Shipping On all orders over 1000 AED
Description
Klipsch DS-180CDT Designer Series In-Ceiling Speaker
HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles of
our premium architectural and box speaker lines, the all new Klipsch
Designer series provides true Klipsch power and performance. With
an 8” Polypropylene woofer and a 1” Silk Dome tweeter mated to
a round Tractrix® horn, the DS-180CDT brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.
CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15°, helping to ensure on-axis frequency response at almost any
listening position.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
SPECIFICATIONS
| Frequency Range | 73Hz – 20kHz +/- 3dB |
| High Frequency Driver | 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 8″ (20.32cm) Polypropylene Woofer |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
| Mounting Depth | 4.45” (11.3cm) |
| Cutout Dimensions | 9.8” (24.9cm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
Additional information
| Weight | 3.36 kg |
|---|---|
| Frequency Response | 73Hz – 20kHz +/- 3dB |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Power Handeling (Cont/Peak) | 50W RMS/ 200W Peak |
| Nominal Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 8" (20.32cm) Polypropylene Woofer |
| Enclosure Type | ABS/Infinite Baffle |
| Coverage Angle | 100° |
| Brand | Klipsch |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Mounting Depth | 4.45” (11.3cm) |
| Cutout Dimensions | 9.8” (24.9cm) |
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
