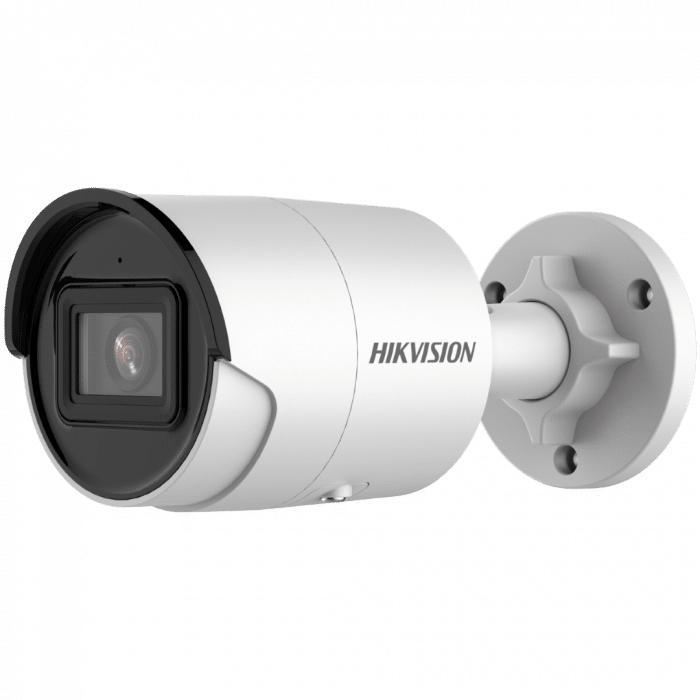

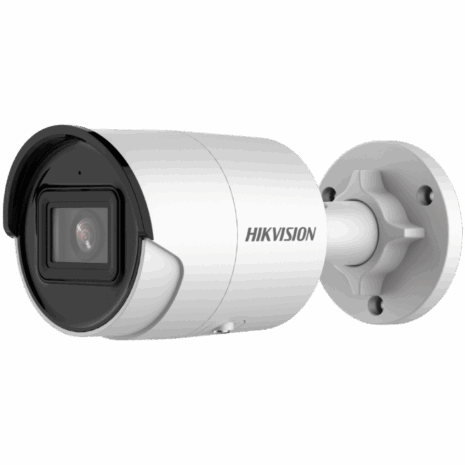

Hikvision 8 MP AcuSense Fixed Bullet Network Camera

Description

Camera Specifications

Image Sensor

• 1/2.8″ Progressive Scan CMOS

Max. Resolution

• 3840 × 2160

Min. Illumination

• Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens Options

• Fixed focal lens: 2.8 mm, 4 mm, and 6 mm

Focal Length & Field of View (FOV)

• 2.8 mm: Horizontal 107°, Vertical 57°, Diagonal 128°
• 4 mm: Horizontal 87°, Vertical 46°, Diagonal 105°
• 6 mm: Horizontal 54°, Vertical 29°, Diagonal 63°

Lens Mount

• M12

Iris Type

• Fixed

Aperture

• F1.6

DORI Distance

• 2.8 mm: Detect 88 m, Observe 35 m, Recognize 17 m, Identify 9 m
• 4 mm: Detect 108 m, Observe 43 m, Recognize 22 m, Identify 11 m
• 6 mm: Detect 177 m, Observe 70 m, Recognize 35 m, Identify 18 m

Illuminator

• Type: IR
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video Specifications

• Main Stream:
  • 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings

Video Bit Rate

• 32 Kbps to 16 Mbps

Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI)

• 1 fixed region for main and sub-stream

Audio Specifications

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users (3 levels: administrator, operator, user)
• Security: Password protection, HTTPS encryption, IP address filter, Security Audit Log, TLS 1.1/1.2, WSSE, Digest authentication

Network Storage

• NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client Compatibility

• iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

• Parameters Switch: Yes
• Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive
• On-Board Storage: MicroSD card up to 512 GB
• Built-In Microphone: Yes
• Reset Key: Yes

Event Management

• Basic Event: Motion detection, video tampering alarm, exception
• Smart Event: Line crossing, intrusion, face detection
• Linkage: FTP/NAS/memory card upload, notify surveillance center, email, trigger recording, trigger capture

General Specifications

• Power:
  • 12 VDC ± 25%, 0.5 A, max. 6 W, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
• Dimensions: Ø70 mm × 161.7 mm (Ø2.8″ × 6.4″)
• Material: Aluminum alloy body, plastic bubble
• Package Dimensions: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight: Approx. 495 g (1.1 lb.), with package: Approx. 759 g (1.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), 95% humidity or less (non-condensing)
• Startup & Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), 95% humidity or less (non-condensing)
• Language Support: 33 languages

General Functionality

• Heartbeat, anti-flicker, password reset via email, pixel counter

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC
• Environment: CE-RoHS, WEEE, Reach
• Protection: IP67
• Safety: UL, CB, CE-LVD, BIS
