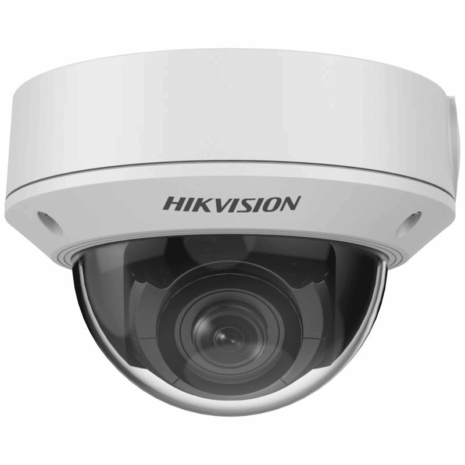

Hikvision 4 MP Varifocal Dome Network Camera

Description

Camera Specifications

Image Sensor

• Type: 1/3″ Progressive Scan CMOS
• Max Resolution: 2560 × 1440
• Min Illumination:
  • Color: 0.005 Lux @(F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 70°
• Rotation: 0° to 355°

Lens

• Type: Varifocal, motorized
• Focal Length: 2.8 to 12 mm
• Field of View:
  • Horizontal: 102° to 31°
  • Vertical: 54° to 17°
  • Diagonal: 123° to 35°
• Mount: Ø14
• Iris: Fixed
• Aperture: F1.6

Illuminator

• IR Wavelength: 850 nm
• IR Range: Up to 30 m

Video

• Main Stream:
  • 50 Hz: 20 fps (2560 × 1440)
  • 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440)
  • 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
• Bit Rate: 32 Kbps to 8 Mbps
• H.264 Profiles: Baseline/Main/High
• H.265 Profile: Main
• ROI: 1 fixed region for main stream

Audio

• Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Bit Rate:
  • G.711: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 160 Kbps
  • AAC: 16 to 64 Kbps
• Sampling Rate: 8 kHz/16 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• Users/Hosts: Up to 32 users (administrator, operator, user levels)
• Storage: MicroSD/SDHC/SDXC card up to 256 GB
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable via client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Enhancement: BLC, 3D DNR

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive port
• On-Board Storage: MicroSD card slot, up to 256 GB
• Audio:
  • Input: 1 line in, two-core terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, non-equilibrium interface
  • Output: 1 line out, two-core terminal block, max output amplitude: 3.3 Vpp, output impedance: 100 Ω, non-equilibrium interface
• Alarm: 1 input, 1 output, max 12 VDC, 30 mA
• Reset Key: Yes

Events

• Basic Events: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.8 A, max 10 W, Ø5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max 11.5 W
• Material: Metal
• Dimensions: Ø141 mm × 99.9 mm (Ø5.6″ × 3.9″)
• Package Dimensions: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
• Weight: Approx. 820 g (1.8 lb.)
• Weight with Package: Approx. 1200 g (2.6 lb.)
• Storage Conditions: -30 °C to 60 °C (22 °F to 140 °F), humidity 95% or less (non-condensing)
• Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F), humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approvals

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B)
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
  • RCM (AS/NZS CISPR 32: 2015)
  • IC VoC (ICES-003: Issue 6, 2016)
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1)
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment:
  • CE-RoHS (2011/65/EU)
  • WEEE (2012/19/EU)
  • Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
