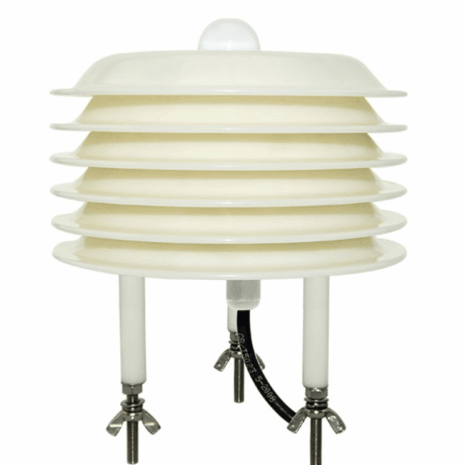

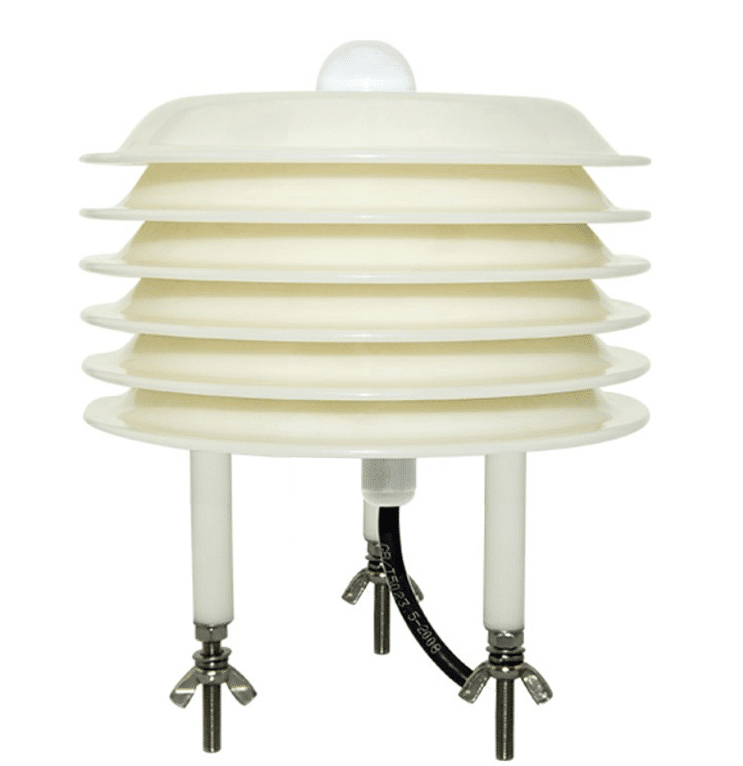

Dragino WSS-05 RS485 Temperature Humidity Illuminance Pressure – 4 in 1 Sensor

Description

WSS-05 is a 4 in 1 RS485 sensor which can monitor Temperature, Humidity, Illuminance and Pressure at the same time. WSS-05 is designed to support the Dragino Weather station solution.

Users only need to connect WSS-05 RS485 interface to WSC1-L. The weather station main processor WSC1-L can detect and upload environment Temperature, Humidity, Illuminance, Pressure to the IoT Server via wireless LoRaWAN protocol.

Specifications:
– Input Power: DC 12 ~ 24v
– Interface: RS485
– Temperature Sensor Spec: Range: -30 ~ 70?,resolution 0.1?,Accuracy: ?0.5?
– Humidity Sensor Spec: Range: 0 ~ 100% RH,resolution 0.1 %RH,Accuracy: 3% RH
– Pressure Sensor Spec: Range: 10?1100hPa,Resolution: 0.1hPa,Accuracy: ?0.1hPa
– Illuminate sensor: Range: 0?2/20/200kLux,Resolution: 10 Lux,Accuracy: ?3?FS
– Working Temperature: -30??70?
– Working Humidity: 10?90%RH
– Power Consumption: 4mA @ 12v

Features:
– RS485 Temperature, Humidity, Illuminance, Pressure sensor

Applications:
– Weather Station
