Bowers and Wilkins CWM 7.3 S2 In-Wall Speaker

Description

Enhance your audio experience with the CWM7.3 S2, a remarkable 3-way in-wall speaker that combines cutting-edge technology with thoughtful design. This speaker is equipped with advanced features, including a Carbon Dome tweeter, Continuum cone FST midrange driver, and Aerofoil profile bass cones. These proven technologies, borrowed from the acclaimed 700 Series range of loudspeakers, ensure exceptional sound reproduction.

The integrated backbox of the CWM7.3 S2 is more than just a convenience feature; it plays a crucial role in optimizing the speaker’s performance. By minimizing sound transference through walls, it delivers cleaner and more accurate sound. The backbox also simplifies retrofit installations, allowing you to upgrade your audio system without hassle.

Crafted with meticulous attention to detail, the CWM7.3 S2 features a baffle constructed from glass-reinforced ABS for enhanced rigidity and resonance control. This critical component contributes to the speaker’s overall performance, ensuring precise and detailed sound reproduction.

With a frequency range extending from 45Hz to 28kHz and a sensitivity of 90dB, this in-wall speaker delivers a wide and dynamic soundstage. The harmonious integration of the Carbon Dome tweeter, Continuum cone FST midrange, and Aerofoil profile bass cones ensures seamless transitions between frequencies, capturing the subtle nuances of your favorite music and movies.

The CWM7.3 S2 is designed to work optimally with amplifiers ranging from 25W to 200W into 8Ω, providing flexibility for various audio setups. Its nominal impedance of 8Ω and minimal harmonic distortion further contribute to its high-performance capabilities.

Installation is made easy with its well-defined frame dimensions and cut-out requirements. The white backbox and grille finish offer a clean and discreet aesthetic that seamlessly blends into any room decor.

Experience exceptional audio quality with the CWM7.3 S2 in-wall speaker. Its innovative design, advanced technologies, and meticulous craftsmanship make it a standout choice for those seeking an immersive and remarkable listening experience.

Technical Specifications

Technical features:

• Carbon Dome tweeter
• Continuum cone FST midrange
• Aerofoil profile bass cones
• Flowport™

Description:

• 3-way in-wall system
• Drive units:
  • 1x ø25mm (1 in) Carbon Dome high-frequency
  • 1x ø100mm (4 in) Continuum cone FST midrange
  • 2x ø150mm (6 in) Aerofoil profile bass
• Frequency range: (-6dB) -6dB at 43Hz and 33kHz
• Frequency Response: -3dB 45Hz – 28kHz ±3dB
• Sensitivity: 90dB spl (2.83Vrms, 1m)
• Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m)
• <1% 80Hz – 33kHz
• <0.5% 120Hz – 33kHz
• Nominal impedance: 8Ω (minimum 3.1Ω)
• Recommended amplifier power: 25W – 200W into 8Ω on unclipped programme
• Frame height: 736mm (29in)
• Frame width: 276mm (11in)
• Depth (behind surface): 102mm (4.02in)
• Cut-out height: 711mm (28in)
• Cut-out width: 251mm (9.9in)
• Cut-out height: w/PMK 715mm (28.1in)
• Cut-out width: w/PMK 256mm (10.1in)

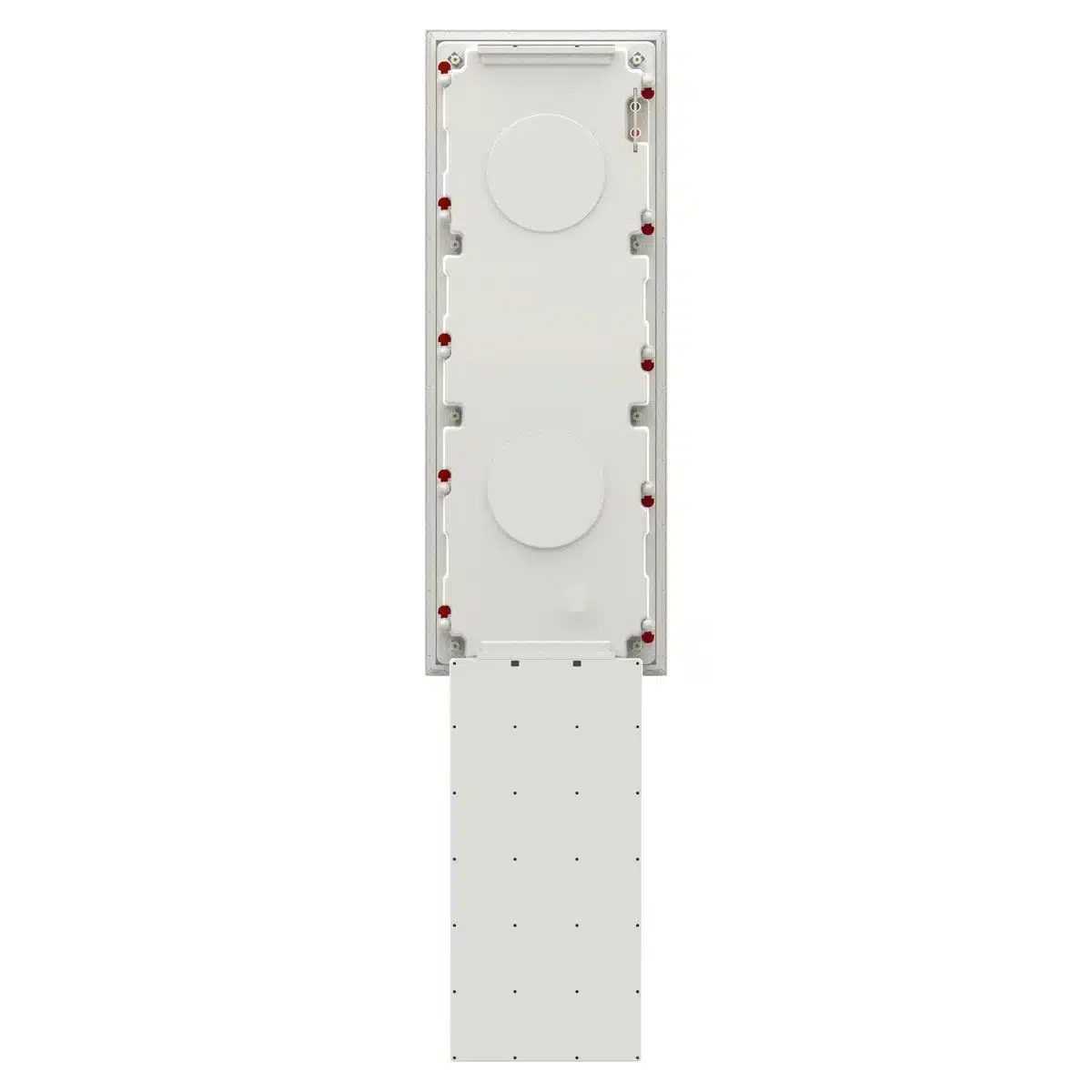

• Reservoir box height: 460mm (18.1in)
• Reservoir box width: 220mm (8.7in)
• Protrusion: 7mm (0.28in)
• PMK: 7.3W
• Net weight: 12.4kg (27.32lb)
• Finishes Back box: White
• Grille: White
