Description

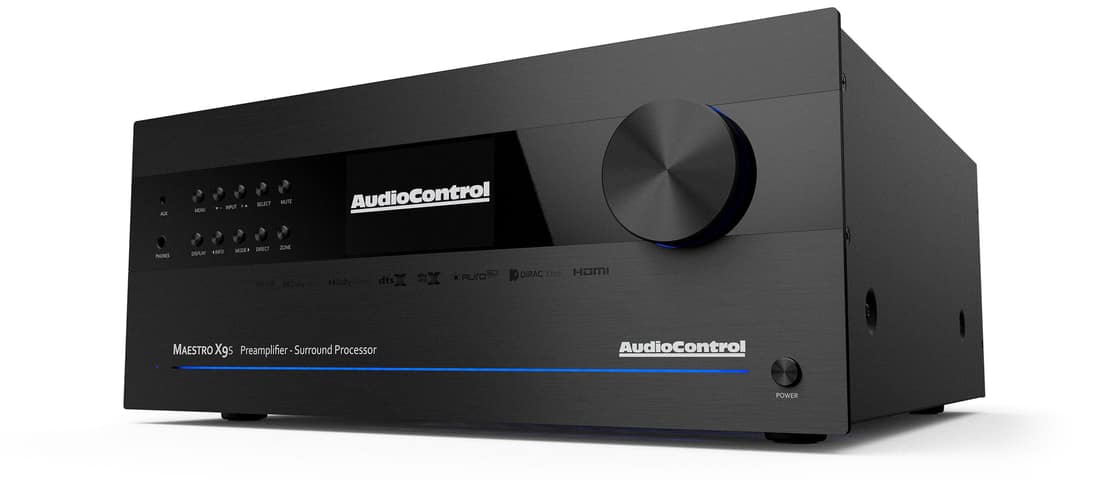

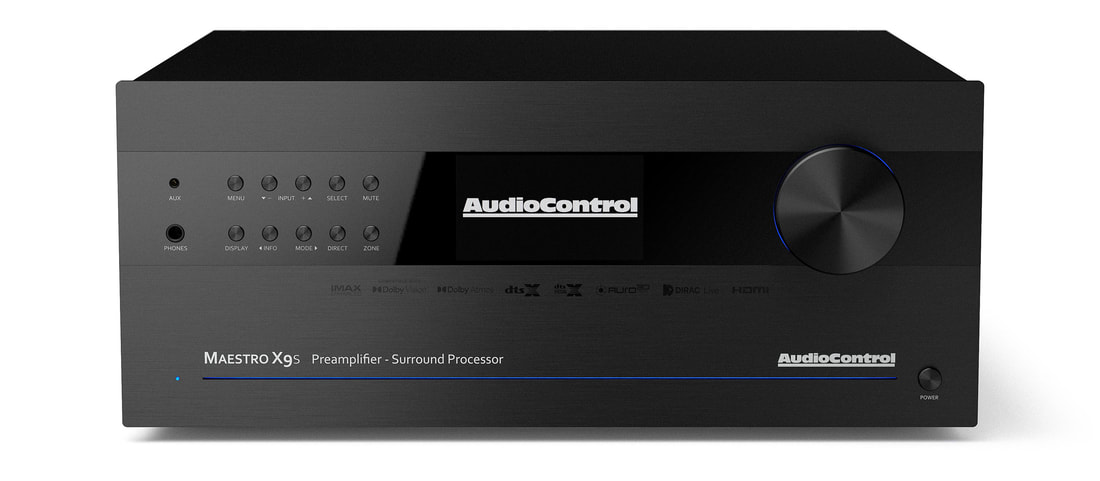

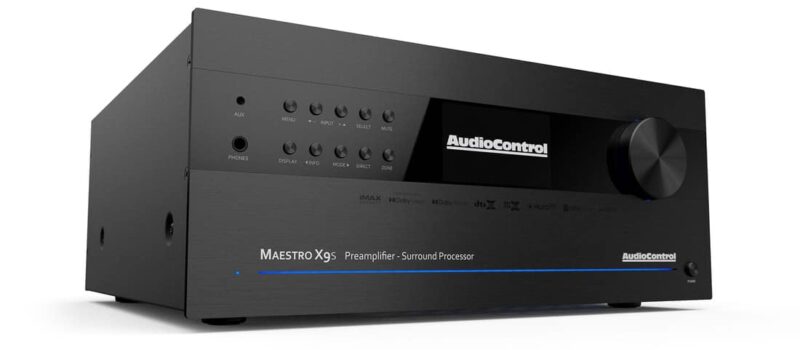

Introducing the AudioControl Maestro X9S – a cutting-edge 8K UHD 9.1.6 Immersive AV Processor that redefines the home theater experience. Crafted for audio enthusiasts, A/V integrators, and home theater specialists, the Maestro X9S delivers precision, power, and control like never before.
Immersive Audio Performance:
The Maestro X9S supports the most sought-after immersive surround formats, including Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, boasting 16-channels of balanced and unbalanced outputs, including four user-configurable channels. With advanced audio processing technology, it ensures unparalleled detail, clarity, and earth-shaking bass response, thanks to the ES9038PRO SABRE audiophile DACs.
Video Excellence:
Experience the brilliance of 8K UHD with HDMI 2.1 and HDCP 2.3 support. All inputs cater to 8K/60P and 4K/120P, while Dolby Vision, HDR10+, HDR10, and HLG support guarantee stunning visuals.
Smart Connectivity:
Enjoy intuitive control with app-based functionality, Google Chromecast, Apple AirPlay 2, Roon Ready, Bluetooth with aptXHD support, and Wi-Fi streaming options. The Maestro X9S seamlessly integrates with the latest audio/video components.
Precision Room Correction:
Featuring Dirac Live room correction, the Maestro X9S adapts to any space by overcoming acoustic anomalies, ensuring an optimal audio environment. Dirac Live Bass Control delivers spatially consistent bass response, enhancing staging, clarity, and bass without resonance.
Exceptional Design:
Encased in an elegantly designed chassis, the Maestro X9S stands out in AudioControl’s Immersive AV Processor lineup. It not only delivers exceptional performance but also complements any home theater setup.
Key Features:
- 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
- ES9038PRO SABRE audiophile DACs for exceptional audio quality
- Dirac Live room correction and Dirac Live Bass Control
- 8K UHD with HDMI 2.1 and HDCP 2.3 support
- Intuitive app-based control, Google Chromecast, Apple AirPlay 2, and Roon Ready
- 16 balanced XLR outputs, 4 user-assignable output channels
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- Multiple connectivity options: IP, IR, RS232, and Wi-Fi
- Roon Ready and supports MQA for an immersive music experience
AudioControl Maestro X9S AV Processor Specifications
|
INPUTS

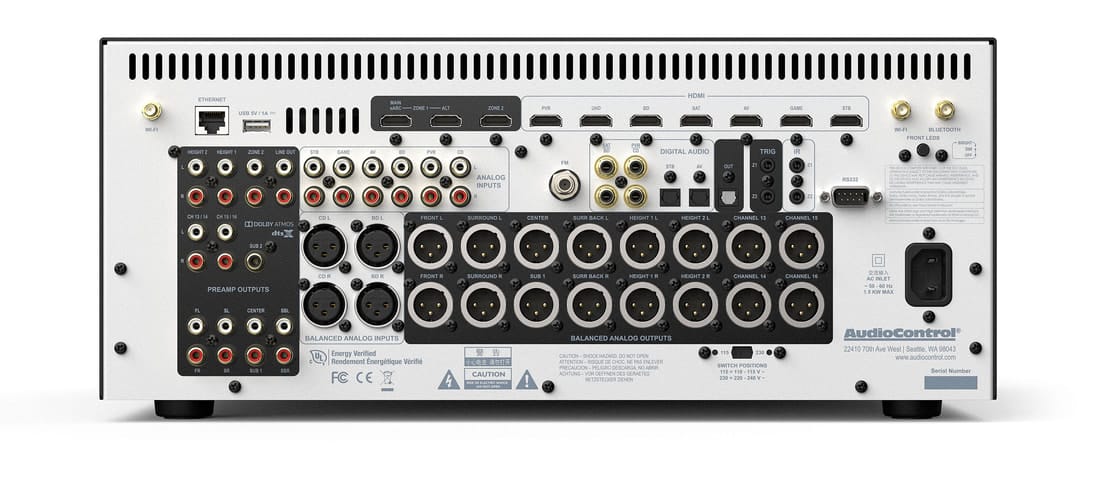

Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink Nominal sensitivity: 1V, 2V, 4V (user selectable) Input Impedance: 47 kΩ Signal to Noise (A-wtd ref 100W) normal/stereo direct: 103 dB/118 dB Frequency Response: 20 Hz – 20 kHz ± 0.2 dB Video Inputs: 7 HDMI (HDMI 2.1 / HDCP 2.3) OUTPUTS
Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink Nominal output level: 1 Vrms (max. 5 Vrms) Output impedance: 560 Ω THD+N (20 Hz – 20 kHz): -100dB Main Video Outputs: Dual (2) HDMI (eARC support) Second Zone Output: 1 HDMI Headphone Output: 1 1/4″ |
CONTROL
IP Ethernet Wifi RS232 Serial Control 12 Volt Trigger Outputs: 2 IR Receiver Inputs: 2 GENERAL
Power consumptoin (standby): <0.5W Power consumption (idle, typical): 40W (170 BTU/hour) Power consumption (maximum): 50W (170 BTU/hour WEIGHT & DIMENSIONS
Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U) Weight: 27.1 lbs. (12.3 kg) IN THE BOX
Maestro X9S, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty |
Elevate your home entertainment with the AudioControl Maestro X9S – where precision, power, and elegance converge for an unparalleled audiovisual experience.
