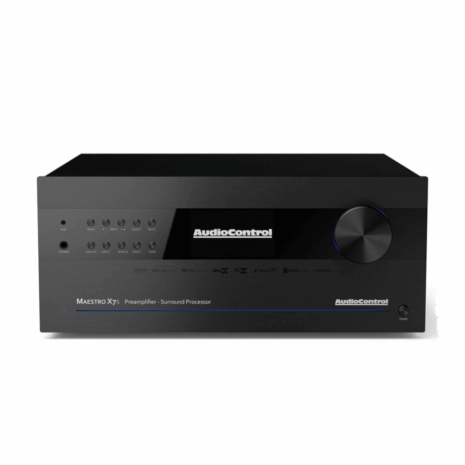

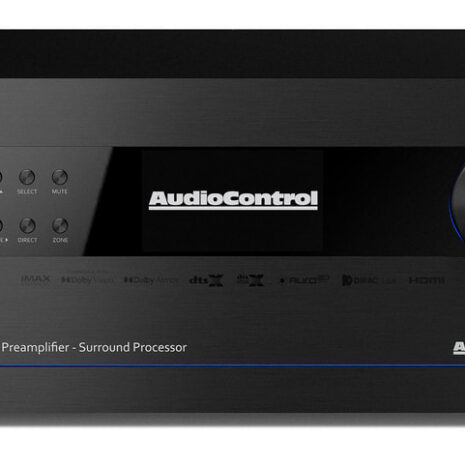

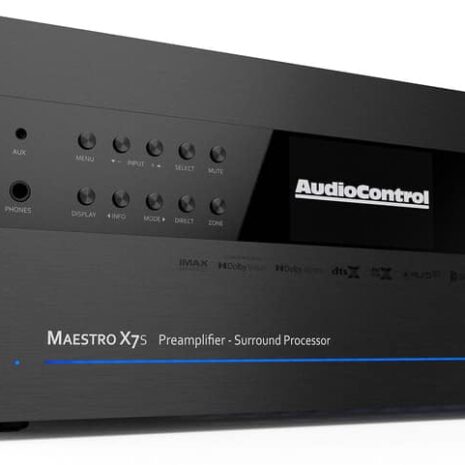

Introducing the AudioControl Maestro X7S 8K UHD 9.1.6 Immersive AV Processor – a cutting-edge audio and video processing masterpiece that sets a new standard for precision, power, and control in home entertainment systems. Designed for home theater specialists and A/V integrators, the Maestro X7S brings a world of immersive surround formats, including Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, to your fingertips.
Unleash the full potential of your audio and video components with the Maestro X7S, featuring 16 channels of balanced and unbalanced outputs, including four user-configurable outputs. The processor supports the latest 8K UHD technology with HDMI 2.1 and HDCP 2.3, ensuring stunning visuals with all inputs supporting 8K/60P and 4K/120P.
Experience unrivaled audio clarity with the Maestro X7S, equipped with ESS SABRE PRO DACs boasting 124 dB of dynamic range. The inclusion of Dirac Live® room correction technology eliminates acoustic anomalies, providing an optimal listening environment. The 9.1.6 decoding capability delivers a true cinematic experience, supporting formats like Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D.
Enjoy seamless control with intuitive app-based interfaces, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity, and integrated web-based configuration. The Maestro X7S also boasts an elegant chassis design, setting it apart as a sophisticated addition to any home entertainment setup.
Key Features:
- 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
- 8K UHD / HDMI 2.1 and HDCP 2.3
- Dirac Live® room correction and ESS SABRE PRO DACs for unparalleled audio quality
- 16 balanced XLR outputs and 4 user-assignable output channels
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- Intuitive control options: app-based, Google Chromecast, Apple AirPlay 2, Roon Ready, Bluetooth with aptXHD
- Elegant design distinguishing AudioControl’s Immersive AV Processor lineup
Immerse yourself in a world of audio and visual excellence with the AudioControl Maestro X7S. Elevate your home entertainment experience to new heights with this high-performance AV processor that seamlessly combines innovation, style, and precision.
SPECIFICATIONS
|
INPUTS
Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink Nominal sensitivity: 1V, 2V, 4V (user selectable) Input Impedance: 47 kΩ Signal to Noise (A-wtd ref 100W) normal/stereo direct: 100 dB/110 dB Frequency Response: 20 Hz – 20 kHz ± 0.2 dB Video Inputs: 7 HDMI (HDMI 2.1 / HDCP 2.3) OUTPUTS
Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink Nominal output level: 1 Vrms (max. 5 Vrms) Output impedance: 560 Ω THD+N (20 Hz – 20 kHz): -100dB Main Video Outputs: Dual (2) HDMI (eARC support) Second Zone Output: 1 HDMI Headphone Output: 1 1/4″ |
CONTROL
IP Ethernet Wifi RS232 Serial Control 12 Volt Trigger Outputs: 2 IR Receiver Inputs: 2 GENERAL
Power consumptoin (standby): <0.5W Power consumption (idle, typical): 40W (170 BTU/hour) Power consumption (maximum): 50W (170 BTU/hour WEIGHT & DIMENSIONS
Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U) Weight: 27.1 lbs. (12.3 kg) IN THE BOX
Maestro X7S, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty |
