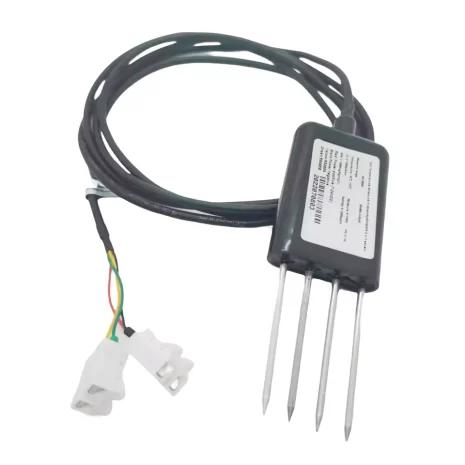

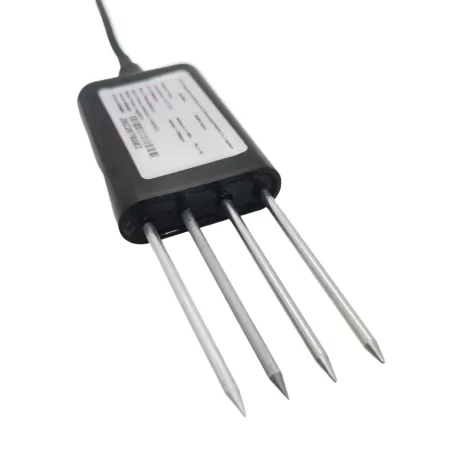

8 In 1 Soil Moisture Temp EC Salinity NPK PH Sensor (RS485)

Description

1. This sensor integrates 8 parameters of soil water content, temperature, conductivity, salinity, N, P, K, and PH.
2. ABS engineering plastic, epoxy resin, waterproof grade IP68, can be buried in water and soil for long-term dynamic testing
3. Austenitic 316 stainless steel, anti-rust, anti-electrolysis, fully sealed, resistant to acid and alkali corrosion.
4. High precision, low threshold, few steps, fast measurement speed, no reagents, unlimited detection times.

Need Rs485/Lorawan Node
Measurement parameters: Soil temperature moisture EC salinity N,P,K
Soil moisture measure range : 0 ~ 100%(V/V)
Soil temperature range : -30~70℃
Soil EC measure range : 0~20000us/cm
Soil Salinity measure range : 0~1000ppm
Soil NPK measure range : 0~1999mg/kg
Soil PH measure range : 3 ~ 9 PH
Soil moisture accuracy : 2% within 0-50%, 3% within 50-100%
Soil temperature accuracy : ±0.5℃（25℃）
Soil EC accuracy : ±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm
Soil salinity accuracy : ±3% in the range of 0-5000ppm; ±5% in the range of 5000-10000ppm
Soil NPK accuracy : ±2%FS
Soil PH accuracy : ±0.3PH
Soil moisture resolution : 0.1%
Soil temperature resolution : 0.1℃
Soil EC resolution : 10us/cm
Soil salinity resolution : 1ppm
Soil NPK resolution : 1 mg/kg(mg/L)
Soil PH resolution : 0.1PH
